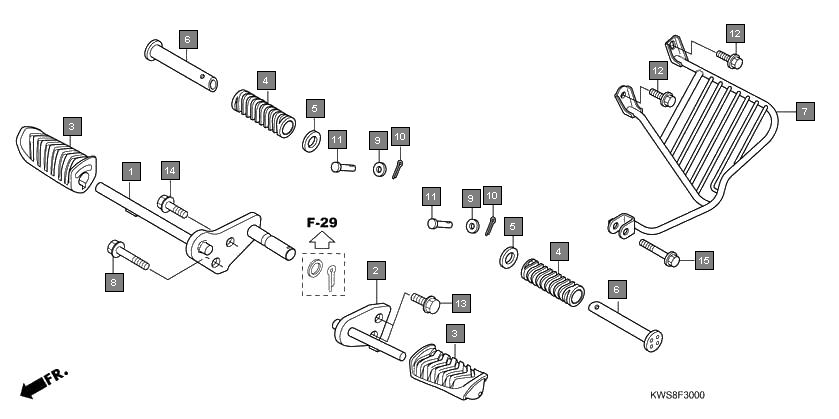

Motorcycles CB Twister CBF110MA Frame Step
Ref.No. Part No. Description Oty
1 50610KWS900 BRACKET COMP., R. STEP 1
2 50620KWS900 BRACKET COMP., L. STEP 1
3 50661KWS900 RUBBER, STEP 2
4 50711KWS900 RUBBER, PILLION STEP 2
5 50712405000 WASHER, PILLION STEP 2
6 50715405000 BAR, PILLION STEP 2
7 51103KWS900 GUARD, SARI 1
8 90155KWS900 BOLT, FLANGE, 8X35 1
9 9410106000 WASHER, PLAIN, 6MM 2
10 9420116120 PIN, SPLIT, 1.6X12 2
11 9501581000 PIN A, PILLION STEP 2
12 957010801208 BOLT, FLANGE, 8X12 2
13 957020801208 BOLT, FLANGE, 8X12 2
14 957010801607 BOLT, FLANGE, 8X16 2
15 957020801607 BOLT, FLANGE, 8X16 2
16 957010802007 BOLT, FLANGE, 8X20 1
17 957020802007 BOLT, FLANGE, 8X20 1
18 957010803500 BOLT, FLANGE, 8X35 1
19 957020803500 BOLT, FLANGE, 8X35 1
