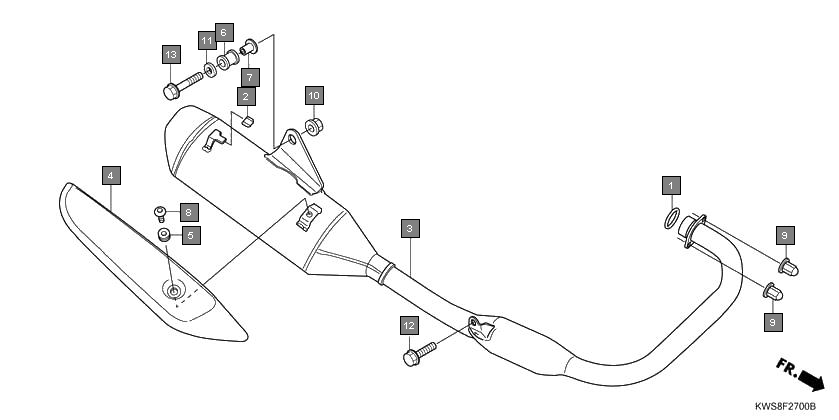

Motorcycles CB Twister CBF110MA Frame Exhaust muffler
Ref.No. Part No. Description Oty
1 18291GE2921 GASKET, EX. PIPE 1
2 18293KPK900 RUBBER, PROTECTOR PACKING 1
3 18300KWS901 MUFFLER COMP., EX. 1
4 18313KWS900 COVER, MUFFLER 1
5 18345MBT610 RUBBER, PROTECTOR MOUNTING 1
6 18421438670 RUBBER, MUFFLER MOUNTING 1
7 18442KRC900 COLLAR, MUFFLER MOUNTING 1
8 90113GFPB00 SCREW, PAN, 6X12 1
9 90305KSP900 NUT, EXHAUST PIPE, 8MM 2
10 9405010000 NUT, FLANGE, 10MM 1
11 9410310000 WASHER, PLAIN, 10MM 1
12 957010801607 BOLT, FLANGE, 8X16 1
13 957020801607 BOLT, FLANGE, 8X16 1
14 958011005500 BOLT, FLANGE, 10X55 1
15 958021005500 BOLT, FLANGE, 10X55 1
