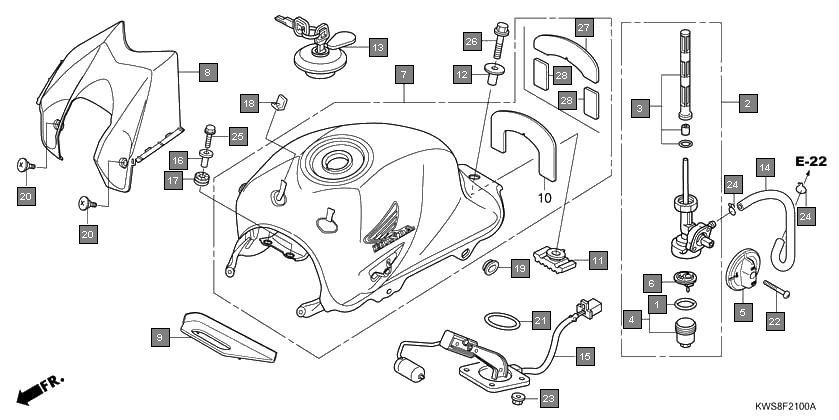

Motorcycles CB Twister CBF110MA Frame Fuel tank
Ref.No. Part No. Description Oty
1 16173001004 PACKING, FUEL STRAINER CUP 1
2 16950KWS901 COCK ASSY., FUEL 1
3 16952KWS901 SCREEN SET, FUEL STRAINER 1
4 16953GT4305 CUP SET, FUEL STRAINER 1
5 16955KWS900 LEVER, FUEL COCK 1
6 16959HB3005 FILTER, CUP 1
7 17500KWS900ZH TANK ASSY., FUEL(WL) *B202P 1* PEARL FIJI BLUE 1
8 17500KWS900ZJ TANK ASSY., FUEL(WL) *GY142C* CANDY PALM GREEN 1
9 17500KWS900ZL TANK ASSY., FUEL(WL) *R320P 1* PEARL SIENA RED 1
10 17500KWS900ZM TANK ASSY., FUEL(WL) *Y210M* ELECTRIC YELLOW METALLIC 1
11 17500KWS930ZF TANK ASSY., FUEL(WL) *NH1 2* BLACK 1
12 17500KWS930ZG TANK ASSY., FUEL(WL) *R344 2* RISING RED 1
13 17500KWS900ZK TANK ASSY., FUEL(WL) *NHA84P 1* PEARL NIGHTSTAR BLACK 1
14 17520KWS900ZK COVER, TANK *Y210M* ELECTRIC YELLOW METALLIC 1
15 17520KWS900ZD COVER, TANK *R320P* PEARL SIENA RED 1
16 17520KWS900ZJ COVER, TANK *GY142C* CANDY PALM GREEN 1
17 17520KWS900ZA COVER, TANK *B202P* PEARL FIJI BLUE 1
18 17520KWS900ZH COVER, TANK *R344* RISING RED 1
19 17520KWS900ZF COVER, TANK *NH1* BLACK 1
20 17520KWS900ZC COVER, TANK *NHA84P* PEARL NIGHTSTAR BLACK 1
21 17521KWS900 TRAY, FUEL 1
22 17526KWS900 FILM, TANK PROTECTOR 1
23 17613KWS900 RUBBER, FUEL TANK RR. 1
24 17614KR3000 COLLAR, FUEL TANK MOUNTING 1
25 17620KWS901 CAP COMP., FUEL FILLER 1
26 17681KWS900 TUBE, FUEL 1
27 37800KWS901 FUEL UNIT 1
28 61104422000 COLLAR, SETTING 2
29 77208KW7900 RUBBER B, SEAT MOUNTING 2
30 83502KCC900 GROMMET, SIDE COVER 2
31 83551300000 GROMMET, AIR CLEANER CASE 2
32 90107KW7900 BOLT, FAIRING SETTING 2
33 91305443740 O-RING, 39.5X5 1
34 93500040400G SCREW, PAN, 4X40 1
35 9405006000 NUT, FLANGE, 6MM 4
36 9500202100 CLIP, TUBE(B10) 2
37 9500202100 CLIP, TUBE(B10) 4
38 960010602200 BOLT, FLANGE, 6X22 2
39 957010802800 BOLT, FLANGE, 8X28 1
40 957020802800 BOLT, FLANGE, 8X28 1
