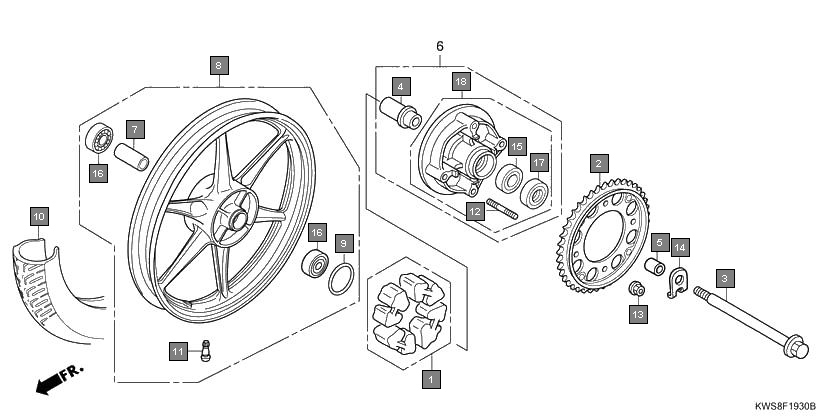

Motorcycles CB Twister CBF110MA Frame Rear wheel
Ref.No. Part No. Description Oty
1 06410KWS901 DAMPER SET, WHEEL 1
2 41200KWF950 SPROCKET COMP., FINAL DRIVEN (42T) 1
3 42301KWS900 AXLE, RR. WHEEL 1
4 42303KWF950 SLEEVE, RR. WHEEL 1
5 42304KWS900 COLLAR, RR. AXLE SLEEVE 1
6 42615KWS900ZA FLANGE SUB ASSY., FINAL DRIVEN *NH303M* MAT AXIS GRAY METALLIC 1
7 42620KTE950 COLLAR, RR. AXLE DISTANCE 1
8 42650KWS900 WHEEL SUB ASSY., RR. 1
9 42653001004 O-RING, 40.5X3 (NIPPON DUST KEEPER) 1
10 42711KWS901 TIRE, RR.(TVS) (80/100-17 M/C 53P) 1
11 42711KWS902 TIRE, RR.(MRF) (80/100-17 M/C 53P) 1
12 42753KWF901 VALVE, RIM(TRITON) 1
13 90128KTE910 BOLT, STUD, 8X20 4
14 90309KTE911 NUT, FLANGE SPECIAL, 8MM 4
15 90558KTR900 WASHER, RR. AXLE 1
16 91051KWF901 BEARING, RADIAL BALL, 6203UU(NSK) 1
17 961506203010 BEARING, RADIAL BALL, 6203UU 1
18 91052KWF901 BEARING, RADIAL BALL, 6301U (NSK) 2
19 961406301010 BEARING, RADIAL BALL, 6301U 2
20 91251KGH901 DUST SEAL, 27X40X4.5(ARAI) 1
