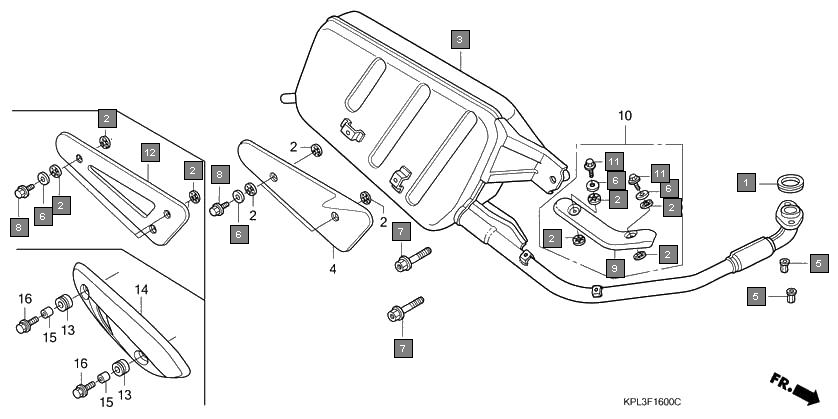

Scooters Activa SCV110B Frame Exhaust muffler(scv100cm2,5/scv1109,b,d)
Ref.No. Part No. Description Oty
1 18292GY1610 GASKET, EX. PIPE 1
2 18292KTP900 PACKING, PROTECTOR 4
3 18300KWP940 MUFFLER COMP., EX. 1
4 90308KPL840 NUT, CAP, 6MM 2
5 9410106700 WASHER, PLAIN, 6MM 4
6 958011004007 BOLT, FLANGE, 10X40 2
7 958021004007 BOLT, FLANGE, 10X40 2
8 18319KWP900 PROTECTOR, EX. PIPE 1
9 960010601007 BOLT, FLANGE, 6X10 2
10 18293KVT900 RUBBER, PROTECTOR PACKING 2
11 18318KWP940 PROTECTOR, MUFFLER 1
12 90312KVT900 COLLAR, 9.5X10 2
13 934040602007 BOLT-WASHER, 6X20 2
