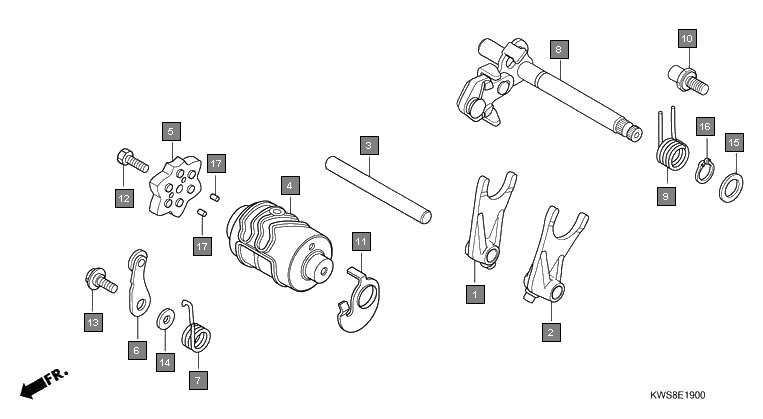

Motorcycles CB Twister CBF110MA Engine Gearshift drum
Ref.No. Part No. Description Oty
1 24211KWS900 FORK, R. GEARSHIFT 1
2 24212KWS900 FORK, L. GEARSHIFT 1
3 24241KPH900 SHAFT, GEARSHIFT FORK 1
4 24301KWS900 DRUM, GEARSHIFT 1
5 24410KVS900 PLATE COMP., GEARSHIFT DRUM STOPPER 1
6 24430KRMB10 STOPPER COMP., GEARSHIFT DRUM 1
7 24436KWS900 SPRING, DRUM STOPPER 1
8 24610KWS900 SPINDLE COMP., GEARSHIFT 1
9 24651KSP910 SPRING, GEARSHIFT RETURN 1
10 24652KSP910 PIN, SHIFT RETURN SPRING 1
11 35753KWS900 ROTOR, NEUTRAL SWITCH 1
12 90003KVS900 BOLT, HEX., 6X20 1
13 90022KRM840 PIVOT, SHIFT DRUM STOPPER ARM 1
14 90417360000 WASHER, DRUM STOPPER 1
15 90457KRM840 WASHER, 14MM 1
16 9451014000 CIRCLIP, EXTERNAL, 14MM 1
17 9622030085 ROLLER, 3X8.5 2
