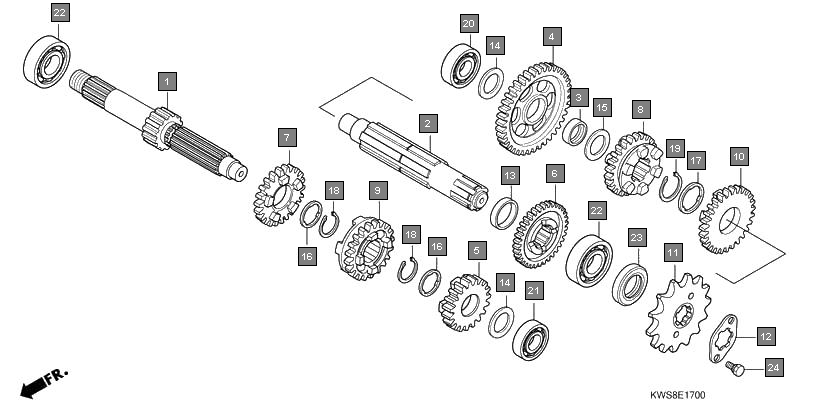

Motorcycles CB Twister CBF110MA Engine Transmission
Ref.No. Part No. Description Oty
1 23211KWS900 MAINSHAFT(11T) 1
2 23221KWS900 COUNTERSHAFT 1
3 23415KPH900 BUSH, 15MM 1
4 23421KWS900 GEAR, COUNTERSHAFT FIRST(35T) 1
5 23431KWS900 GEAR, MAINSHAFT SECOND(17T) 1
6 23441KWS900 GEAR, COUNTERSHAFT SECOND(29T) 1
7 23451KWS900 GEAR, MAINSHAFT THIRD(21T) 1
8 23461KWS900 GEAR, COUNTERSHAFT THIRD(26T) 1
9 23471KWS900 GEAR, MAINSHAFT FOURTH(24T) 1
10 23481KWS900 GEAR, COUNTERSHAFT FOURTH(22T) 1
11 23801GF6000 SPROCKET, DRIVE(14T) 1
12 23802GN5910 PLATE, FIXING 1
13 23911KWS900 COLLAR, 20MM 1
14 90412KPH900 WASHER, SPECIAL, 12X23 2
15 90412187000 WASHER, THRUST, 15MM 1
16 90461035000 WASHER, SPLINE, 17MM 2
17 90461459010 WASHER, SPLINE, 20MM 1
18 90601KRM840 CIRCLIP, 17MM 2
19 90601459000 CIRCLIP, 20MM 1
20 91004KWS901 BEARING, RADIAL BALL, 6201(FAG) 1
21 91005KWS901 BEARING, RADIAL BALL, 6001(FAG) 1
22 91006KWS902 BEARING, RADIAL BALL, 6203(NSK) 2
23 91204KWB601 OIL SEAL, 17X29X5 1
24 93101060100A BOLT, HEX., 6X10 2
