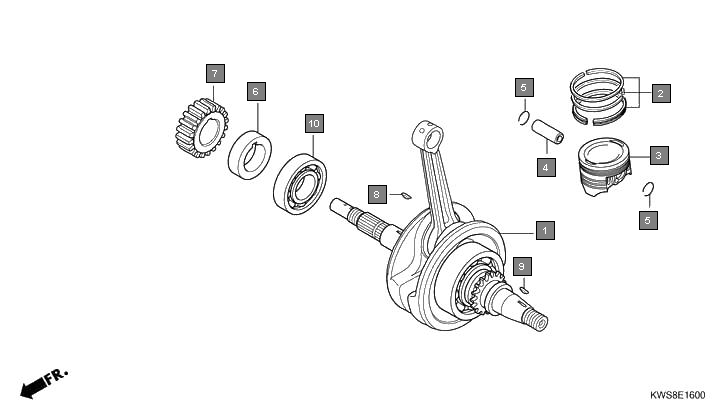

Motorcycles CB Twister CBF110MA Engine Crankshaft/piston
Ref.No. Part No. Description Oty
1 13000KWS900 CRANKSHAFT COMP. 1
2 13011KWS900 RING SET, PISTON(STD.)(RIKEN) 1
3 13012KWS900 RING SET, PISTON(0.25)(RIKEN) 1
4 13013KWS900 RING SET, PISTON(0.50)(RIKEN) 1
5 13014KWS900 RING SET, PISTON(0.75)(RIKEN) 1
6 13015KWS900 RING SET, PISTON(1.00)(RIKEN) 1
7 13101KWS900 PISTON(STD.) 1
8 13102KWS900 PISTON(0.25) 1
9 13103KWS900 PISTON(0.50) 1
10 13104KWS900 PISTON(0.75) 1
11 13105KWS900 PISTON(1.00) 1
12 13111KWS900 PIN, PISTON 1
13 13115KWS900 CLIP, PISTON PIN, 12MM 2
14 13412KWS900 COLLAR, PRIMARY DRIVE GEAR 1
15 23121KWS900 GEAR, PRIMARY DRIVE(18T) 1
16 90741KGH900 KEY, WOODRUFF, 4MM 1
17 90741KFB000 KEY, WOODRUFF, 4MM 1
18 91001KWS901 BEARING, RADIAL BALL, 63/22 (NSK) 1
