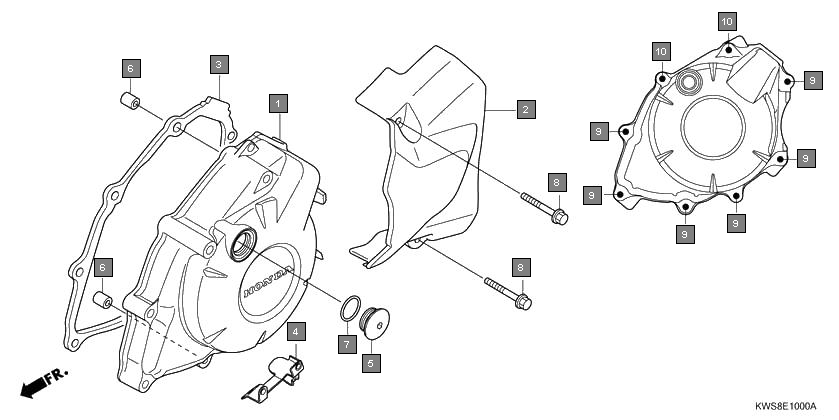

Motorcycles CB Twister CBF110MA Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11341KWS900 COVER, L. CRANKCASE 1
2 11360KWS900 COVER COMP., L. RR. 1
3 11395KWS900 GASKET, L. CRANKCASE COVER 1
4 31250KWS900 CLAMPER COMP., SUB HARNESS 1
5 90084MN8010 CAP, 14MM 1
6 91105KSP910 DOWEL PIN, 8X14 2
7 91303KRM840 O-RING, 13.8X2.5 1
8 960010603000 BOLT, FLANGE, 6X30 2
9 960010603500 BOLT, FLANGE, 6X35 6
10 960010606000 BOLT, FLANGE, 6X60 2
