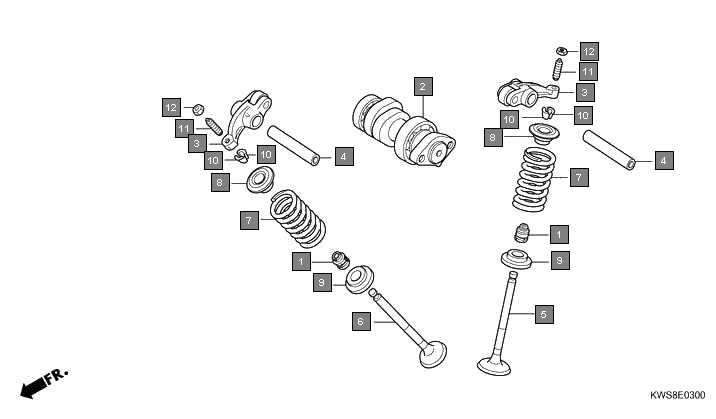

Motorcycles CB Twister CBF110MA Engine Camshaft/valve
Ref.No. Part No. Description Oty
1 12209GB4682 SEAL, VALVE STEM(ARAI) 2
2 14100KWS901 CAMSHAFT COMP. 1
3 14430KWP900 ARM COMP., IN. VALVE ROCKER 2
4 14461GCC000 SHAFT, EX. ROCKER ARM (IN./EX.)(INLET SIDE) 2
5 14711KWB600 VALVE, IN. 1
6 14721KVY900 VALVE, EX. 1
7 14751KWB600 SPRING, VALVE(NIPPON HATSUJO) 2
8 14771KPL900 RETAINER, VALVE SPRING 2
9 14775KWP900 SEAT, VALVE SPRING 2
10 14781MA6000 COTTER, VALVE 4
11 90012KWW740 SCREW, TAPPET ADJUSTING 2
12 90206KPL900 NUT, TAPPET ADJUSTING 2
