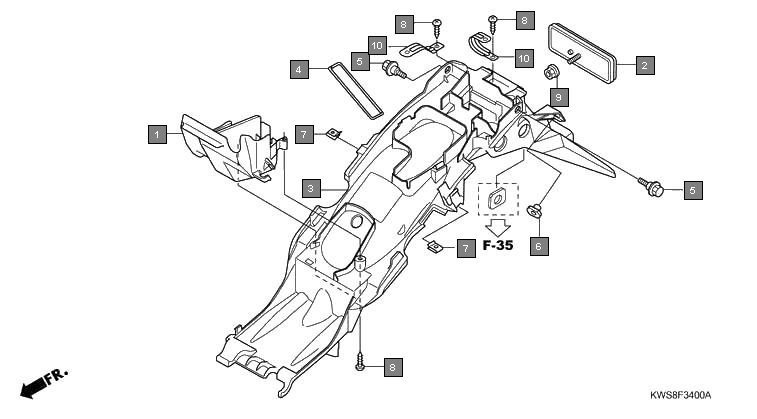

Motorcycles CB Twister CBF110E Frame Rear fender
Ref.No. Part No. Description Oty
1 17234KWS900 COVER, DUCT 1
2 33741KPL902 REFLECTOR, REFLEX 1
3 80100KWS900ZA FENDER SET, RR.(WL) *TYPE1* 1
4 83606KWS901 BAND, TOOL 1
5 90111162000 BOLT, FLANGE, 6MM 2
6 90311KTE910 NUT, RR. FENDER 2
7 90344KTE910 NUT, CLIP, 4MM 2
8 9390324320 SCREW, TAPPING, 4X12 4
9 90301KWN901 NUT, U, 5MM 1
10 9459146000 CLIP, WIRE 2
