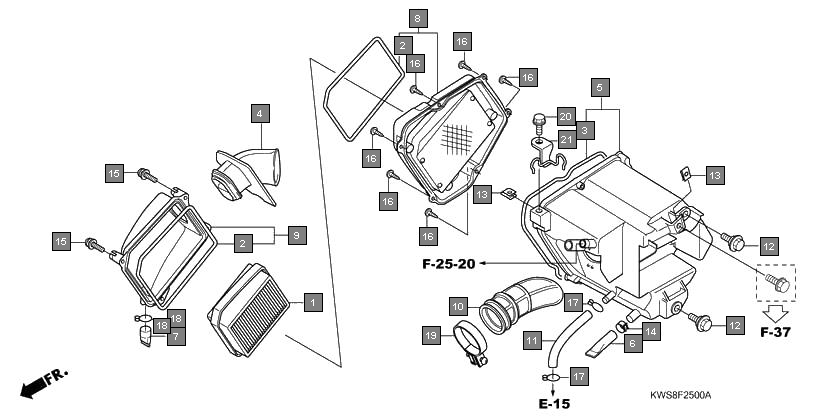

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17211KWS900 | ELEMENT COMP., AIR CLEANER | 1 |
2 | 17214KWS900 | SEAL B, AIR CLEANER | 2 |
3 | 17215KWS900 | SEAL A, AIR CLEANER | 1 |
4 | 17219KWS900 | DUCT, AIR CLEANER | 1 |
5 | 17225KWS600 | CASE SUB ASSY., AIR CLEANER | 1 |
6 | 17227KWS900 | TUBE, VINYL, 11X15X70 | 1 |
7 | 17234KCC941 | TUBE, AIR CLEANER DRAIN | 1 |
8 | 17235KWS900 | HOLDER SUB ASSY., AIR CLEANER | 1 |
9 | 17245KWS600 | COVER SUB ASSY., AIR CLEANER | 1 |
10 | 17253KWS900 | TUBE, AIR CLEANER CONNECTING | 1 |
11 | 17371KWS900 | TUBE, BREATHER | 1 |
12 | 90111162000 | BOLT, FLANGE, 6MM | 2 |
13 | 90311KSH900 | NUT, CLIP, 6MM | 2 |
14 | 91406KFN850 | CLAMP, TUBE(D14.5) | 1 |
15 | 938930501600 | SCREW-WASHER, 5X16 | 4 |
16 | 9390325380 | SCREW, TAPPING, 5X16 | 6 |
17 | 9500202120 | CLIP, TUBE(B12) | 2 |
18 | 9500202130 | CLIP, TUBE(B12.5) | 0 |
19 | 9501846250 | BAND, AIR CLEANER CONNECTING TUBE(46) | 1 |
20 | 957010601608 | BOLT, FLANGE, 6X16 | 1 |
21 | 957020601608 | BOLT, FLANGE, 6X16 | 1 |
22 | 16195KWS900 | GUIDE COMP., AIR VENT TUBE | 1 |
23 | 90653KWPF00 | CLIP, TUBE(B12.5) | 1 |
