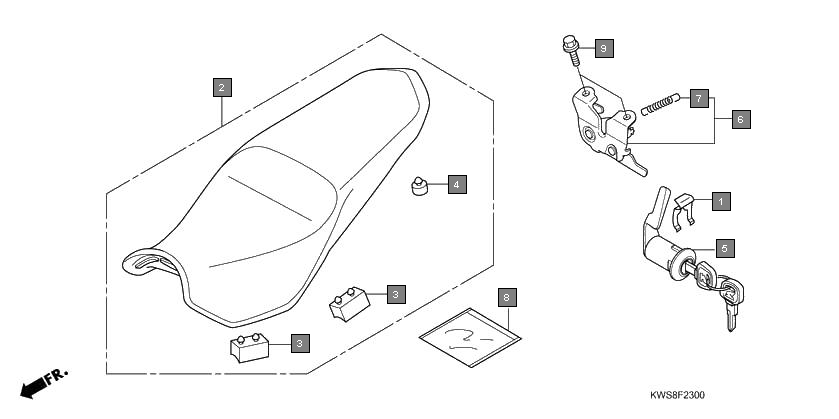

Motorcycles CB Twister CBF110E Frame Seat
Ref.No. Part No. Description Oty
1 75581GN8920 SPRING, LOCK KEY SETTING 1
2 77200KWS901 SEAT ASSY., DOUBLE 1
3 77204KCC900 RUBBER A, SEAT SETTING 4
4 77206KWS900 RUBBER, SEAT SETTING 2
5 77225KWS900 LOCK ASSY., SEAT 1
6 77235KWS900 CATCH COMP., SEAT 1
7 77236GBL000 SPRING, SEAT CATCH 1
8 77251KPL900 BAG, SERVICE BOOK 1
9 957010601208 BOLT, FLANGE, 6X12 2
10 957020601208 BOLT, FLANGE, 6X12 2
