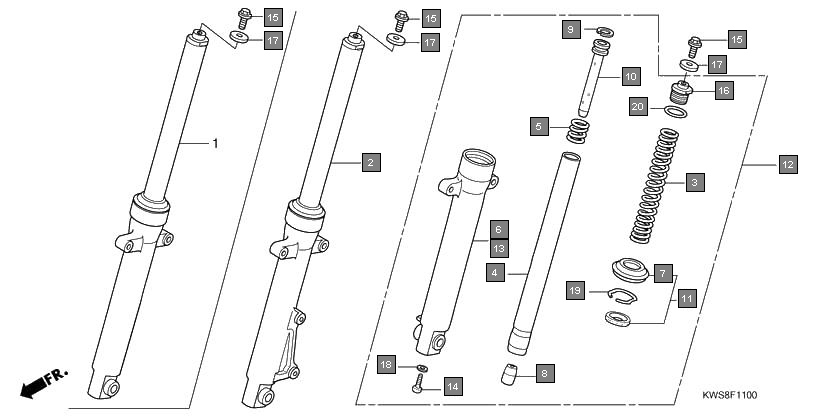

Motorcycles CB Twister CBF110E Frame Front fork
Ref.No. Part No. Description Oty
1 51400KWSB01 FORK ASSY., R. FR. 1
2 51401KWS901 SPRING, FR. FORK 2
3 51410KWS901 PIPE COMP., FR. FORK 2
4 51412KAG901 SPRING, REBOUND(SHOWA) 2
5 51420KWSB01 CASE, R. FR. BOTTOM 1
6 51425961013 DUST SEAL(SHOWA) 2
7 51432KST901 PIECE, OIL LOCK 2
8 51437KVN901 RING, PISTON 2
9 51440KWS901 PIPE, SEAT 2
10 51490KWS901 SEAL SET, FR. FORK 2
11 51500KWSB01 FORK ASSY., L. FR. 1
12 51520KWSB01 CASE, L. FR. BOTTOM 1
13 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
14 90123KRM860 BOLT, FR. FORK 2
15 90123KSP901 BOLT A, FR. FORK 2
16 90521KSP900 WASHER, 10.3MM 2
17 90544439930 PACKING(SHOWA) 2
18 90601GF5731 RING, OIL SEAL STOPPER(SHOWA) 2
19 91356KAG901 O-RING(SHOWA) 2
