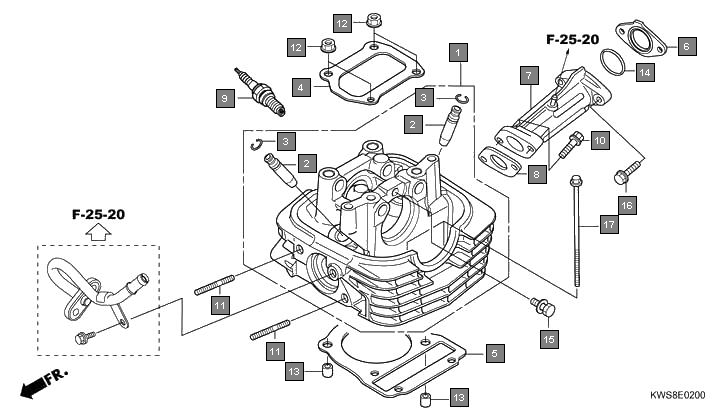

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 12200KWSB00 | HEAD COMP., CYLINDER | 1 |
2 | 12204KWPP00 | GUIDE, VALVE(O.S.) | 2 |
3 | 12206KPL900 | CLIP, VALVE GUIDE | 2 |
4 | 12212KWS900 | PLATE, CYLINDER HEAD | 1 |
5 | 12251KWS901 | GASKET, CYLINDER HEAD | 1 |
6 | 16211KTC900 | INSULATOR, CARBURETOR | 1 |
7 | 17110KWSB00 | PIPE COMP., INLET | 1 |
8 | 17112KWS901 | GASKET, IN. PIPE | 1 |
9 | 31917KPH901 | PLUG, SPARK(CPR7EA-9)(NGK) | 1 |
10 | 90001KWS900 | BOLT, FLANGE, 6X28 | 2 |
11 | 90040KWS900 | BOLT, STUD, 8X25 | 2 |
12 | 90202KWS900 | NUT, FLANGE, 7MM | 4 |
13 | 90701KPL900 | DOWEL PIN, SPECIAL, 8X14 | 2 |
14 | 91304KPGT00 | O-RING, 28X2.4 | 1 |
15 | 934040601200 | BOLT-WASHER, 6X12 | 1 |
16 | 957010602500 | BOLT, FLANGE, 6X25 | 2 |
17 | 957020602500 | BOLT, FLANGE, 6X25 | 2 |
18 | 960010610000 | BOLT, FLANGE, 6X100 | 2 |
