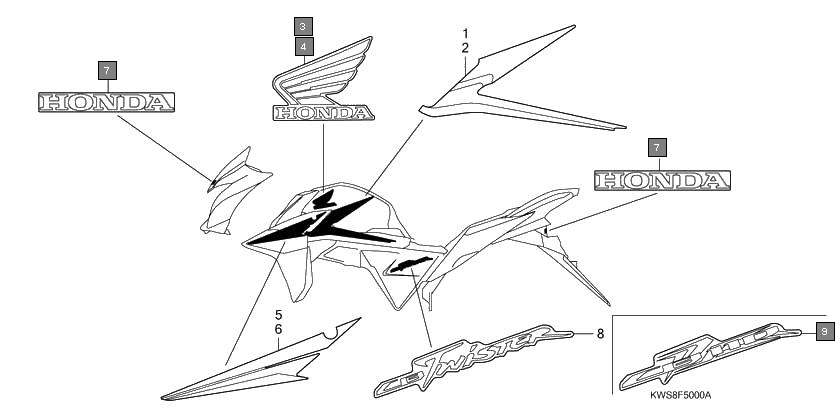

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 17507KWS930ZA | STRIPE, R. FUEL TANK *TYPE1* | 1 |
2 | 17507KWS930ZB | STRIPE, R. FUEL TANK *TYPE2* | 1 |
3 | 17508KWS930ZA | STRIPE, L. FUEL TANK *TYPE1* | 1 |
4 | 17508KWS930ZB | STRIPE, L. FUEL TANK *TYPE2* | 1 |
5 | 17531KWS900ZB | MARK, R. FUEL TANK WING *TYPE2* | 1 |
6 | 17531KWS900ZA | MARK, R. FUEL TANK WING *TYPE1* | 1 |
7 | 17531KWS900ZD | MARK, R. FUEL TANK WING *TYPE4* | 1 |
8 | 17531KWS900ZE | MARK, R. FUEL TANK WING *TYPE5* | 1 |
9 | 17531KWS900ZC | MARK, R. FUEL TANK WING *TYPE3* | 1 |
10 | 17532KWS900ZB | MARK, L. FUEL TANK WING *TYPE2* | 1 |
11 | 17532KWS900ZA | MARK, L. FUEL TANK WING *TYPE1* | 1 |
12 | 17532KWS900ZD | MARK, L. FUEL TANK WING *TYPE4* | 1 |
13 | 17532KWS900ZE | MARK, L. FUEL TANK WING *TYPE5* | 1 |
14 | 17532KWS900ZC | MARK, L. FUEL TANK WING *TYPE3* | 1 |
15 | 50201KWS930ZA | STRIPE, R. SIDE COWL *TYPE1* | 1 |
16 | 50201KWS930ZB | STRIPE, R. SIDE COWL *TYPE2* | 1 |
17 | 50301KWS930ZA | STRIPE, L. SIDE COWL *TYPE1* | 1 |
18 | 50301KWS930ZB | STRIPE, L. SIDE COWL *TYPE2* | 1 |
19 | 61308KWS900ZA | MARK, HONDA *TYPE1* | 2 |
20 | 83610KWS900ZA | MARK, SIDE COVER *TYPE1* | 2 |
21 | 83610KWS840ZA | MARK, SIDE COVER *TYPE1* | 2 |
