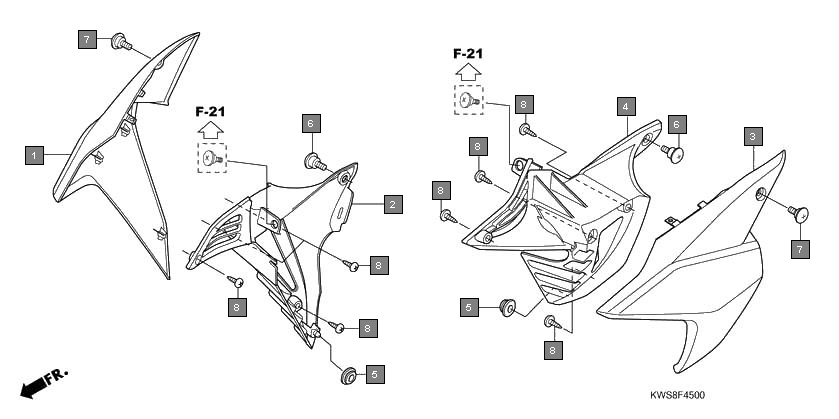

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50260KWS900ZK | COWL, R. SIDE *Y210M* ELECTRIC YELLOW METALLIC | 1 |
2 | 50260KWS900ZF | COWL, R. SIDE *R320P* PEARL SIENA RED | 1 |
3 | 50260KWS900ZH | COWL, R. SIDE *GY142C* CANDY PALM GREEN | 1 |
4 | 50260KWS900ZC | COWL, R. SIDE *B202P* PEARL FIJI BLUE | 1 |
5 | 50200KWS930ZC | COWL SET, R. SIDE(WL) *TYPE1* | 1 |
6 | 50200KWS930ZD | COWL SET, R. SIDE(WL) *TYPE2* | 1 |
7 | 50260KWS900ZE | COWL, R. SIDE *NHA84P* PEARL NIGHTSTAR BLACK | 1 |
8 | 50265KWS900 | COWL, R. SIDE INNER | 1 |
9 | 50270KWS900ZK | COWL, L. SIDE *Y210M* ELECTRIC YELLOW METALLIC | 1 |
10 | 50270KWS900ZD | COWL, L. SIDE *R320P* PEARL SIENA RED | 1 |
11 | 50270KWS900ZH | COWL, L. SIDE *GY142C* CANDY PALM GREEN | 1 |
12 | 50270KWS900ZA | COWL, L. SIDE *B202P* PEARL FIJI BLUE | 1 |
13 | 50300KWS930ZC | COWL SET, L. SIDE(WL) *TYPE1* | 1 |
14 | 50300KWS930ZD | COWL SET, L. SIDE(WL) *TYPE2 1* | 1 |
15 | 50270KWS900ZC | COWL, L. SIDE *NHA84P* PEARL NIGHTSTAR BLACK | 1 |
16 | 50275KWS900 | COWL, L. SIDE INNER | 1 |
17 | 83551300000 | GROMMET, AIR CLEANER CASE | 2 |
18 | 90102KWS900 | BOLT, FAIRING SETTING | 2 |
19 | 90103KWS900 | BOLT, COWL SETTING | 2 |
20 | 9390334320 | SCREW, TAPPING, 4X12 | 8 |
