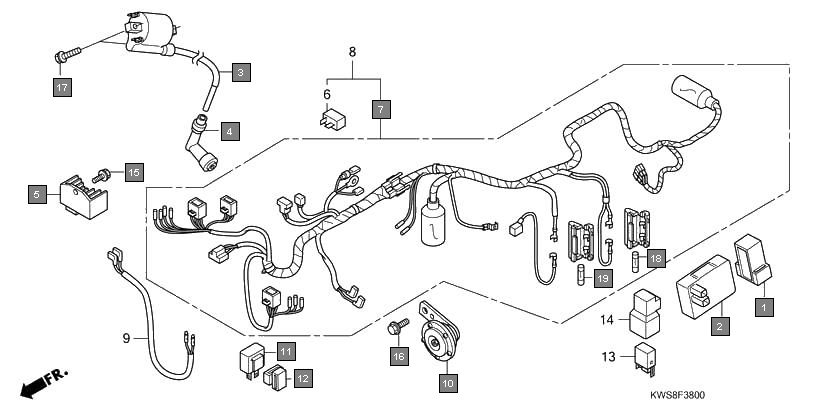

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 30401KWS900 | CUSHION, C.D.I. UNIT | 1 |
2 | 30410KWS901 | C.D.I. UNIT | 1 |
3 | 30500KWS901 | COIL ASSY., IGNITION(ANJ) | 1 |
4 | 30700KWS901 | CAP ASSY., NOISE SUPPRESSOR | 1 |
5 | 31600KWS901 | RECTIFIER COMP., REGULATOR | 1 |
6 | 32100KWS900 | HARNESS, WIRE | 1 |
7 | 38110KWS901 | HORN COMP.(HIGH) | 1 |
8 | 38301KWS901 | RELAY COMP., WINKER(MULTILINK) | 1 |
9 | 38306GE7000 | SUSPENSION, WINKER RELAY | 1 |
10 | 957010601200 | BOLT, FLANGE, 6X12 | 1 |
11 | 957020601200 | BOLT, FLANGE, 6X12 | 1 |
12 | 957010601608 | BOLT, FLANGE, 6X16 | 1 |
13 | 957020601608 | BOLT, FLANGE, 6X16 | 1 |
14 | 960010602000 | BOLT, FLANGE, 6X20 | 2 |
15 | 9820011000 | FUSE A(10A) | 2 |
16 | 9820011500 | FUSE(15A) | 2 |
