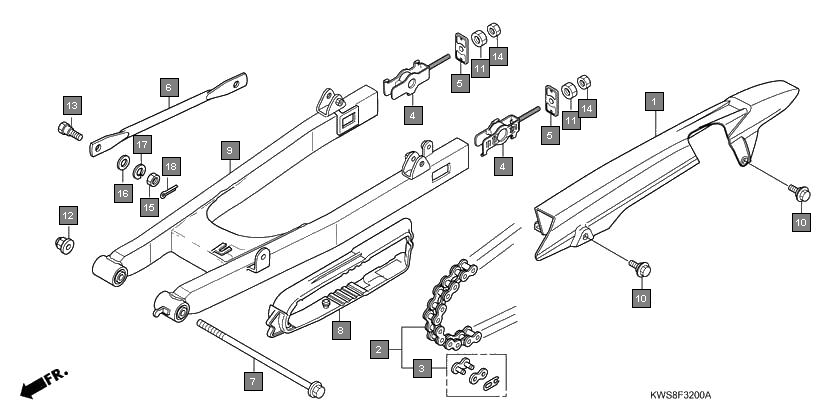

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 40510KWS900 | CASE, DRIVE CHAIN | 1 |
| 2 | 40530KWF961 | CHAIN, DRIVE(LGB R428HBS-118L) | 1 |
| 3 | 40531KWF961 | JOINT, DRIVE CHAIN(LGB) | 1 |
| 4 | 40544KWF900 | ADJUSTER COMP., R. CHAIN | 2 |
| 5 | 40546KWF900 | CAP, SWINGARM END | 2 |
| 6 | 43431KTE910 | ARM, RR. BRAKE STOPPER | 1 |
| 7 | 52101KWS900 | BOLT, SWINGARM PIVOT | 1 |
| 8 | 52170KWS900 | SLIDER, CHAIN | 1 |
| 9 | 52200KWS900 | SWINGARM SUB ASSY., RR. | 1 |
| 10 | 90111KWF900 | BOLT, FLANGE, 6MM | 2 |
| 11 | 90302KBP900 | NUT, SPECIAL, 6MM | 2 |
| 12 | 90306KST942 | NUT, FLANGE, 12MM (LEO FASTENERS) | 1 |
| 13 | 90306KTE911 | NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) | 1 |
| 14 | 9281210000 | BOLT A, STOPPER ARM | 1 |
| 15 | 94001060000S | NUT, HEX., 6MM | 2 |
| 16 | 94001080000S | NUT, HEX., 8MM | 1 |
| 17 | 9410108000 | WASHER, PLAIN, 8MM | 1 |
| 18 | 9411110000 | WASHER, SPRING, 10MM | 1 |
| 19 | 9420120150 | PIN, SPLIT, 2.0X15 | 1 |
