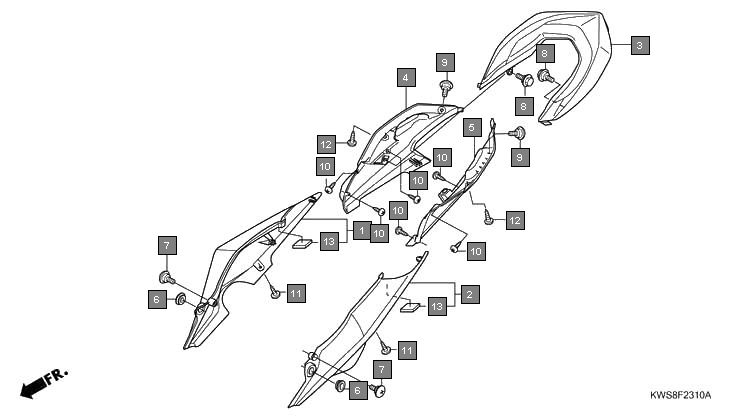

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 77210KWS900ZC | COWL, R. RR. *NHA95M* SWORD SILVER METALLIC | 1 |
2 | 77210KWS900ZB | COWL, R. RR. *R344* RISING RED | 1 |
3 | 77210KWS900ZA | COWL, R. RR. *NH1* BLACK | 1 |
4 | 77220KWS900ZC | COWL, L. RR. *NHA95M* SWORD SILVER METALLIC | 1 |
5 | 77220KWS900ZB | COWL, L. RR. *R344* RISING RED | 1 |
6 | 77220KWS900ZA | COWL, L. RR. *NH1* BLACK | 1 |
7 | 77230KWS900 | COWL, RR. CENTER | 1 |
8 | 77250KWS900 | BASE, R. RR. COWL | 1 |
9 | 77260KWS900 | BASE, L. RR. COWL | 1 |
10 | 83551GE2000 | GROMMET, AIR CLEANER CASE | 2 |
11 | 90105MN5000 | SCREW, INNER PANEL | 2 |
12 | 90111KAN900 | BOLT, FLANGE, 6MM | 2 |
13 | 90150MBG000 | SCREW, PAN, 5X15 | 2 |
14 | 9390324320 | SCREW, TAPPING, 4X12 | 6 |
15 | 9390324380 | SCREW, TAPPING, 4X12 | 2 |
16 | 9390325380 | SCREW, TAPPING, 5X16 | 2 |
17 | 50386130690 | CUSHION C, BATTERY | 2 |
