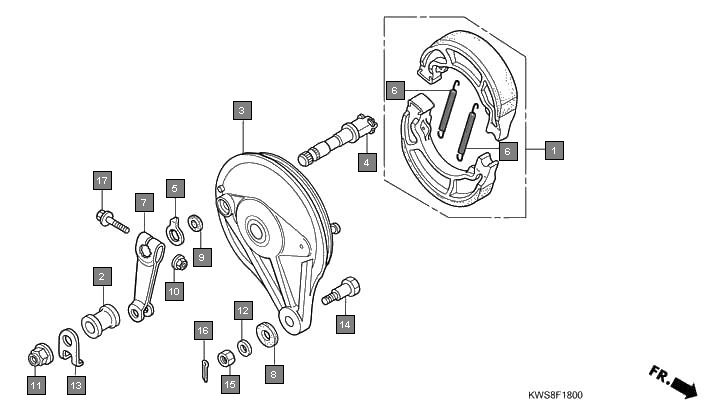

Motorcycles CB Twister CBF110A Frame Rear brake panel
Ref.No. Part No. Description Oty
1 06430KST940 SHOE SET, BRAKE(ASK) 1
2 06430KST950 SHOE SET, BRAKE(JB) 1
3 42313KWS900 COLLAR, RR. BRAKE PANEL SIDE 1
4 43100KWS900ZA PANEL COMP., RR. BRAKE *NH303M* MAT AXIS GRAY METALLIC 1
5 43141KST920 CAM, RR. BRAKE 1
6 43145KWS900 INDICATOR, RR. BRAKE 1
7 43151110000 SPRING, BRAKE SHOE 2
8 43410KCT690 ARM, RR. BRAKE 1
9 43434ME1670 RUBBER, STOPPER ARM 1
10 45134250000 DUST SEAL, BRAKE CAM 1
11 90302KST942 NUT, FLANGE, 6MM (LEO FASTENERS) 1
12 90302KTE911 NUT, FLANGE SPECIAL, 6MM (SIMMONDS MARSHALL) 1
13 90306KST942 NUT, FLANGE, 12MM (LEO FASTENERS) 1
14 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
15 90505425000 WASHER, 8MM 1
16 90558KTR900 WASHER, RR. AXLE 1
17 9281110000 BOLT A, BRAKE STOPPER 1
18 94001080000S NUT, HEX., 8MM 1
19 9420120150 PIN, SPLIT, 2.0X15 1
20 957010603500 BOLT, FLANGE, 6X35 1
21 957020603500 BOLT, FLANGE, 6X35 1
