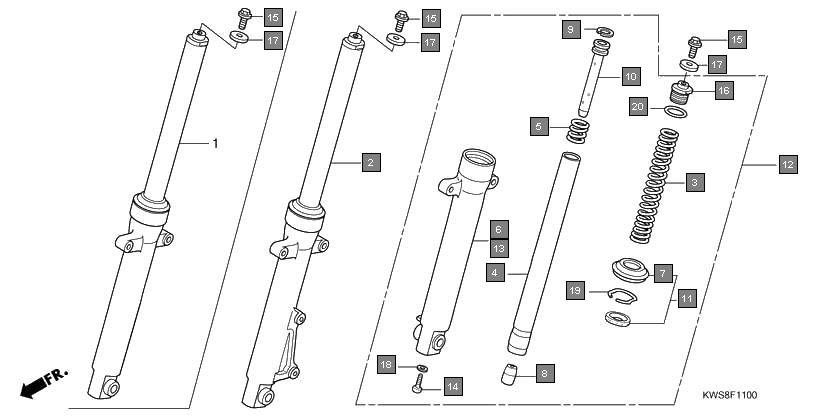

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 51400KWS901 | FORK ASSY., R. FR. | 1 |
2 | 51401KWS901 | SPRING, FR. FORK | 2 |
3 | 51410KWS901 | PIPE COMP., FR. FORK | 2 |
4 | 51412KAG901 | SPRING, REBOUND(SHOWA) | 2 |
5 | 51420KWS901 | CASE, R. FR. BOTTOM | 1 |
6 | 51425961013 | DUST SEAL(SHOWA) | 2 |
7 | 51432KST901 | PIECE, OIL LOCK | 2 |
8 | 51437KVN901 | RING, PISTON | 2 |
9 | 51440KWS901 | PIPE, SEAT | 2 |
10 | 51490KWS901 | SEAL SET, FR. FORK | 2 |
11 | 51500KWS901 | FORK ASSY., L. FR. | 1 |
12 | 51520KWS901 | CASE, L. FR. BOTTOM | 1 |
13 | 90116KAG901 | BOLT, SOCKET, 8MM(SHOWA) | 2 |
14 | 90123KRM860 | BOLT, FR. FORK | 2 |
15 | 90123KSP901 | BOLT A, FR. FORK | 2 |
16 | 90521KSP900 | WASHER, 10.3MM | 2 |
17 | 90544439930 | PACKING(SHOWA) | 2 |
18 | 90601GF5731 | RING, OIL SEAL STOPPER(SHOWA) | 2 |
19 | 91356KAG901 | O-RING(SHOWA) | 2 |
