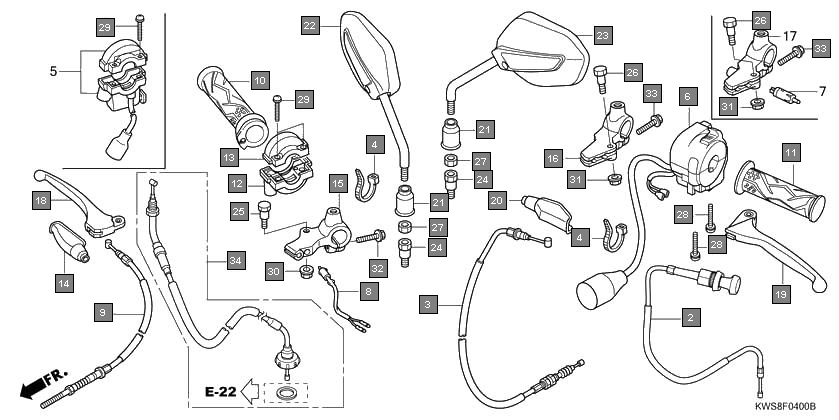

Motorcycles CB Twister CBF110A Frame Handle lever/switch/cable/mirror
Ref.No. Part No. Description Oty
1 17950KWS900 CABLE COMP., CHOKE 1
2 22870KWS900 CABLE COMP., CLUTCH 1
3 32161KSP920 BAND B1, WIRE 2
4 35200KWS901 SWITCH ASSY., WINKER 1
5 35340KWS901 SWITCH ASSY., FR. STOP 1
6 45450KWS901 CABLE COMP., FR. BRAKE 1
7 53140KWS900 GRIP COMP., THROTTLE 1
8 53166KWS900 GRIP, L. HANDLE 1
9 53167GE4000 HOUSING, THROTTLE 1
10 53168166000 HOUSING, THROTTLE 1
11 53171KCC900 COVER, R. HANDLE LEVER 1
12 53171KWS900 BRACKET, R. HANDLE LEVER 1
13 53172KTE910 BRACKET, L. HANDLE LEVER 1
14 53175KTE910 LEVER COMP., R. HANDLE 1
15 53178KWF900 LEVER COMP., L. HANDLE 1
16 53179KTC900 COVER, L. HANDLE LEVER 1
17 88114198D10 CAP, LOCK NUT 2
18 88210KWS902 MIRROR COMP., R. 1
19 88220KWS902 MIRROR COMP., L. 1
20 90103KTE920 BOLT, ADAPTER, 10MM 2
21 90114428870 BOLT, HANDLE LEVER PIVOT 1
22 90201MW3620 NUT, HEX., 10MM (LEFT HAND THREAD) 2
23 93500050200G SCREW, PAN, 5X20 2
24 93500050220G SCREW, PAN, 5X22 2
25 9405006000 NUT, FLANGE, 6MM 1
26 960010602507 BOLT, FLANGE, 6X25 1
27 17920KWS315 CABLE SET, THROTTLE 1
