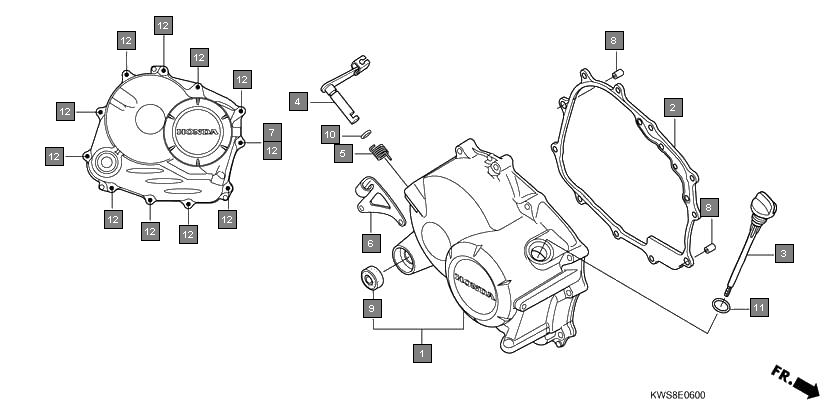

Motorcycles CB Twister CBF110A Engine Right crankcase cover
Ref.No. Part No. Description Oty
1 11330KWS900 COVER COMP., R. CRANKCASE 1
2 11394KWS901 GASKET, R. CRANKCASE COVER 1
3 15651KWS900 GAUGE, OIL LEVEL 1
4 22810KWS900 LEVER COMP., CLUTCH 1
5 22815166000 SPRING, CLUTCH LEVER 1
6 22821KWS900 RECEIVER, CLUTCH CABLE 1
7 90463ML7000 WASHER, SEALING, 6.5MM 1
8 90702KRM840 DOWEL PIN, 8X14 2
9 91204KSP911 OIL SEAL, 16X28X7 1
10 91303719003 O-RING, 9MM 1
11 91307035000 O-RING, 18X3 1
12 960010603500 BOLT, FLANGE, 6X35 11
