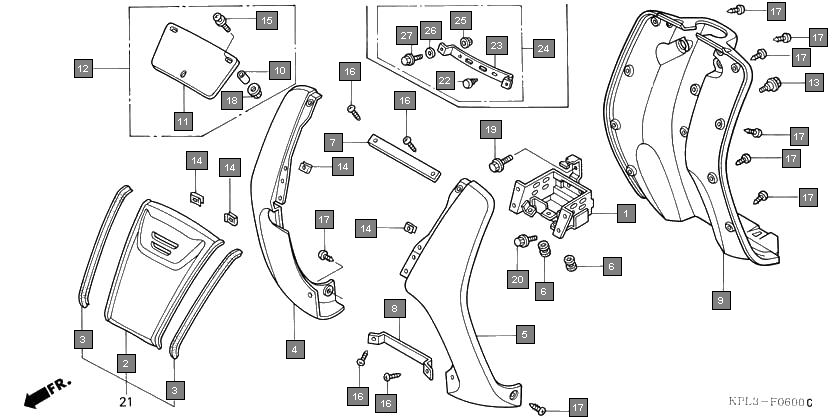

Scooters Activa SCV100CM5 Frame Front cover(scv100cm2,5)
Ref.No. Part No. Description Oty
1 50330KPLP00 TRAY COMP., BATTERY 1
2 64200KPL901ZZ COVER, FR. CENTER 1
3 64203KPL900 MOLDING, FR. CENTER COVER 2
4 64302KPLP00ZZ COVER COMP., R. FR. 1
5 64303KPLP00ZZ COVER COMP., L. FR. 1
6 64307KPL900 GROMMET, FR. CENTER COVER 2
7 64308KPLP00 PLATE, CROSS UPPER 1
8 64309KPLP00 PLATE, CROSS LOWER 1
9 81131KPL840ZA COVER, INNER *NH186R*STEEL GRAY 1
10 84702KCC900 COLLAR 3
11 84705KPL900 PLATE, FR. NUMBER 1
12 84710KPL900 PLATE SET, FR. NUMBER 1
13 90111KPL900 BOLT, INNER COVER 1
14 90344KPL900 NUT, CLIP, 5MM 10
15 938930602507 SCREW-WASHER, 6X25 3
16 9390325220 SCREW, TAPPING, 5X12 4
17 9390325380 SCREW, TAPPING, 5X16 12
18 9405006080 NUT, FLANGE, 6MM 3
19 957010601208 BOLT, FLANGE, 6X12 3
20 958010601008 BOLT, FLANGE, 6X10 4
21 50501KPL900 STOPPER, RUBBER 1
22 64207KPL900 STAY, FR. NUMBER PLATE 1
23 64220KPL900 SET, FR. NUMBER PLATE 1
24 9405006000 NUT, FLANGE, 6MM 2
25 9410106000 WASHER, PLAIN, 6MM 2
26 957010601207 BOLT, FLANGE, 6X12 2
