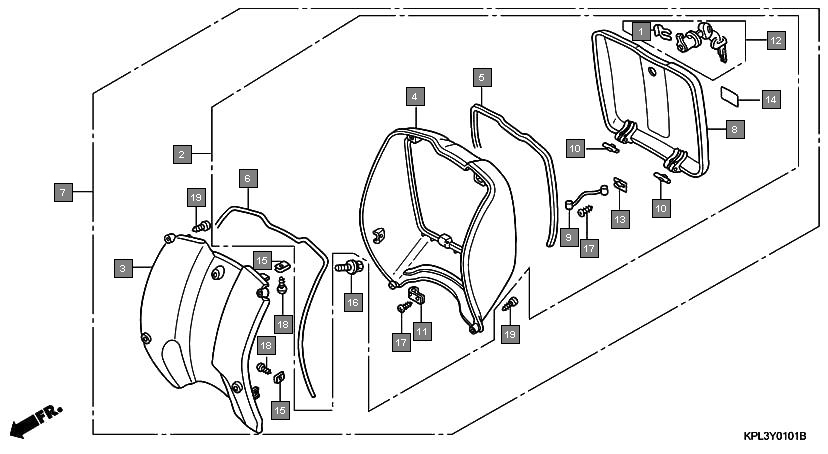

Scooters Activa SCV100CM5 Frame Inner box
Ref.No. Part No. Description Oty
1 75581KPL900 SPRING, LOCK KEY SETTING 1
2 81130KPL840 BOX ASSY., INNER 1
3 81135KPL900 INNER, INNER BOX 1
4 81136KPL900 OUTER, INNER BOX 1
5 81137KPL900 SEAL, INNER BOX 1
6 81138KPL900 SEAL, OUTER INNER 1
7 81140KPL840 BOX SET, INNER 1
8 81141KPL840 LID, INNER BOX 1
9 81142KPL900 CABLE, INNER BOX 1
10 81143GC8000 PIN, INNER BOX LID 2
11 81143KPL900 PLATE, INNER BOX 1
12 81145KPL900 KEY SET, INNER BOX 1
13 81146KPL900 PLATE, INNER BOX LID 1
14 87505KPL840 LABEL, TIRE 1
15 90344KPL900 NUT, CLIP, 5MM 4
16 934040602007 BOLT-WASHER, 6X20 1
17 9390324220 SCREW, TAPPING, 4X10 2
18 9390325180 SCREW, TAPPING, 5X10 4
19 9390325580 SCREW, TAPPING, 5X25 6
