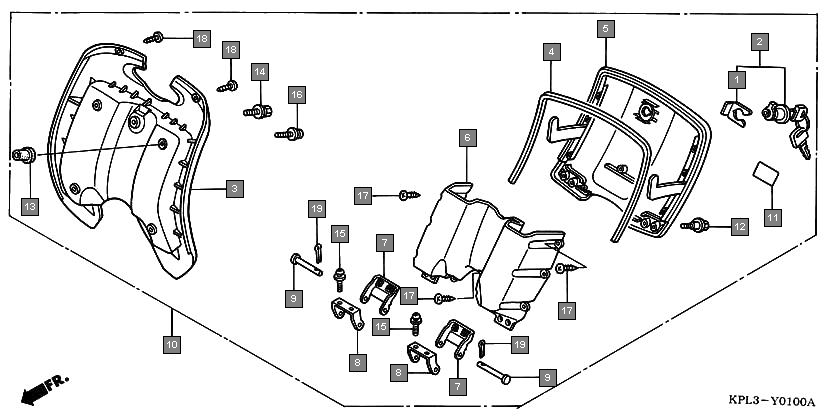

Scooters Activa SCV100CM5 Frame Inner box(b)
Ref.No. Part No. Description Oty
1 75581KPL900 SPRING, LOCK KEY SETTING 1
2 81145KPL900 KEY SET, INNER BOX 1
3 81156KPL900 BOX B, INNER 1
4 81157KPL900 SEAL B, INNER BOX LID 1
5 81161KPL840 LID, INNER BOX B 1
6 81162KPL900 POCKET, INNER BOX B 1
7 81165KPL900 HINGE A, INNER BOX B 2
8 81166KPL900 HINGE B, INNER BOX B 2
9 81167KPL900 PIN, INNER BOX B 2
10 81170KPL840 BOX B SET, INNER 1
11 87505KPL840 LABEL, TIRE 1
12 90114KPL900 BOLT, FLANGE, 5X16 4
13 90156KPL900 NUT, WELDING, 5X0.8 4
14 934010602007 BOLT-WASHER, 6X20 1
15 938910501218 SCREW-WASHER, 5X12 4
16 938940502508 SCREW-WASHER, 5X25 4
17 9390324380 SCREW, TAPPING, 4X12 9
18 9390325680 SCREW, TAPPING, 5X30 2
19 9420116151 PIN, SPLIT, 1.6 2
