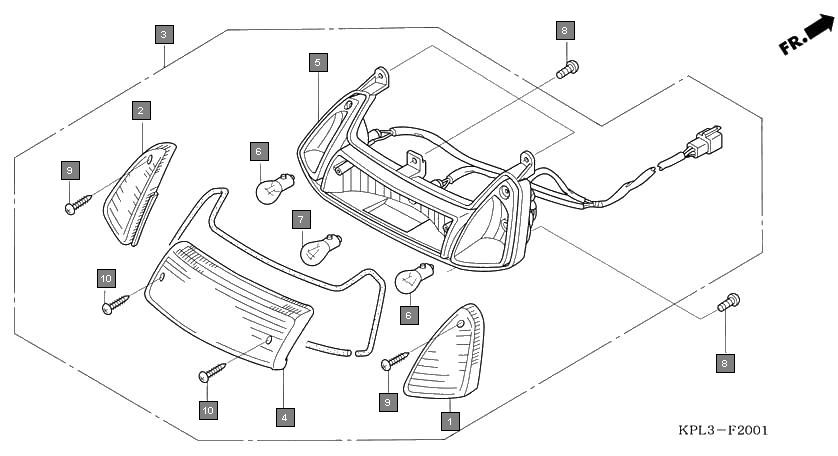

Scooters Activa SCV100CM5 Frame Rear combination light(scv100cm5)
Ref.No. Part No. Description Oty
1 33602KPL841 LENS, R. RR. WINKER 1
2 33652KPL841 LENS, L. RR. WINKER 1
3 33700KPL841 LIGHT ASSY., RR. COMBINATION 1
4 33701KPL841 LENS, TAILLIGHT 1
5 33704KPL841 BASE COMP., RR. 1
6 34904KPL840 BULB, WINKER(12V 21W) 2
7 34906KRB900 BULB, TAILLIGHT(12V 21/5W) 1
8 91509GE2760 SCREW, PAN, 5X11.5 5
9 9390134520 SCREW, TAPPING, 4X20 2
10 9390134580 SCREW, TAPPING, 4X20 2
