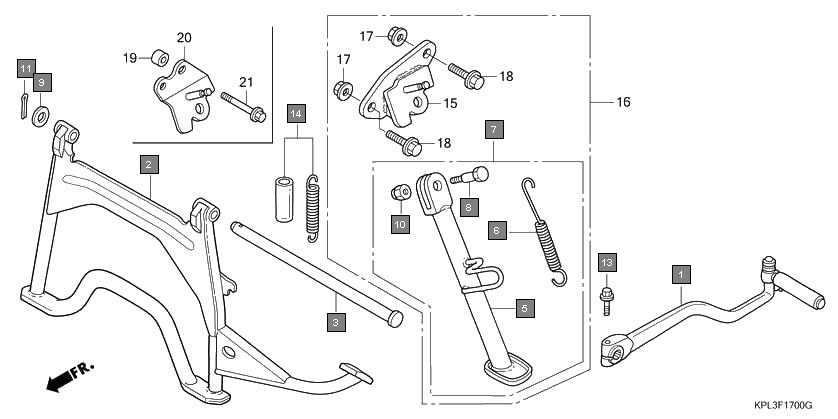

Scooters Activa SCV100CM5 Frame Kick starter arm/stand
Ref.No. Part No. Description Oty
1 28300KPL900 ARM ASSY., KICK STARTER 1
2 50500KRP980 STAND COMP., MAIN 1
3 50503GCC000 SHAFT, MAIN STAND 1
4 50530KPL900 BAR COMP., SIDE STAND 1
5 50536KPL900 SPRING, SIDE STAND 1
6 50560KPL900 STAND SET, SIDE 1
7 90109KPL900 BOLT, SIDE STAND PIVOT 1
8 9410212000 WASHER, PLAIN, 12MM 1
9 90304KCS920 NUT, U, 10MM 1
10 9420125250 PIN, SPLIT, 2.5X25 1
11 957010602207 BOLT, FLANGE, 6X22 1
12 50505GCC000 SPRING ASSY., MAIN STAND 1
