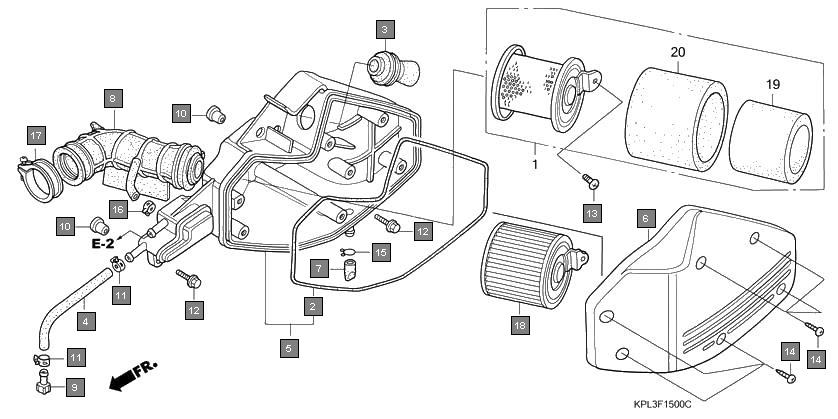

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 17214GCC000 | SEAL, AIR CLEANER COVER | 1 |
| 2 | 17215KPL900 | DUCT, AIR CLEANER | 1 |
| 3 | 17216KPL900 | TUBE, VINYL, 8X12X210 | 1 |
| 4 | 17225KPL840 | CASE SUB ASSY., AIR CLEANER | 1 |
| 5 | 17231KPL900 | COVER, AIR CLEANER | 1 |
| 6 | 17234KCC941 | TUBE, AIR CLEANER DRAIN | 1 |
| 7 | 17253KPL840 | TUBE, AIR CLEANER CONNECTING | 1 |
| 8 | 17370419700 | PLUG, BREATHER TUBE | 1 |
| 9 | 50731KV3770 | COLLAR, PILLION STEP SETTING | 2 |
| 10 | 90602KPL900 | CLAMP, TUBE(D12.0) | 2 |
| 11 | 934040604007 | BOLT-WASHER, 6X40 | 2 |
| 12 | 93500050080A | SCREW, PAN, 5X8 | 1 |
| 13 | 9390325480 | SCREW, TAPPING, 5X20 | 6 |
| 14 | 9500202130 | CLIP, TUBE(B12.5) | 1 |
| 15 | 950024105000 | CLAMP, TUBE(D10.5) | 1 |
| 16 | 9501840250 | BAND, AIR CLEANER CONNECTINGTUBE(40) | 1 |
| 17 | 17211KPL840 | ELEMENT COMP., AIR CLEANER | 1 |
