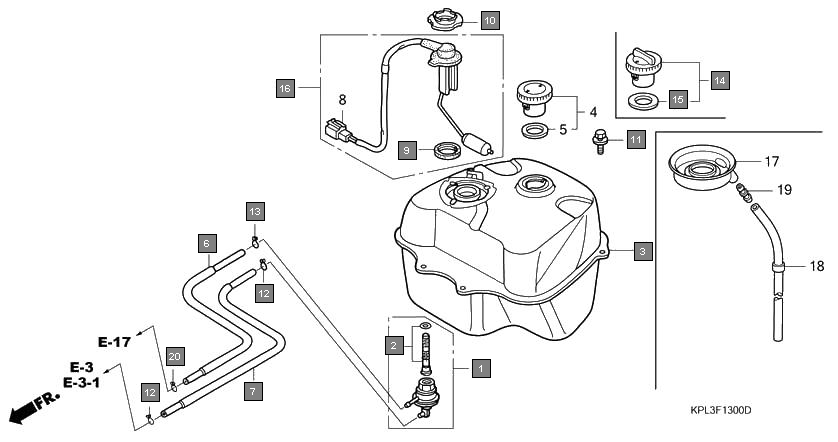

Scooters Activa SCV100CM5 Frame Fuel tank
Ref.No. Part No. Description Oty
1 16950KRP980 COCK ASSY., FUEL 1
2 16952KRP980 SCREEN SET, FUEL STRAINER 1
3 17500KPL840 TANK COMP., FUEL 1
4 17683KPL900 TUBE COMP., FUEL 1
5 17684KPL840 TUBE COMP., VACUUM 1
6 37801GA7700 PACKING, BASE 1
7 37802GA7700 RETAINER, FUEL UNIT 1
8 934040601208 BOLT-WASHER, 6X12 2
9 9500202070 CLIP, TUBE(B7) 2
10 9500202080 CLIP, TUBE(B8) 1
11 17620KRP980 CAP COMP., FUEL FILLER 1
12 17632383831 PACKING, FUEL FILLER CAP 1
13 37080KPL840 FUEL UNIT SET 1
