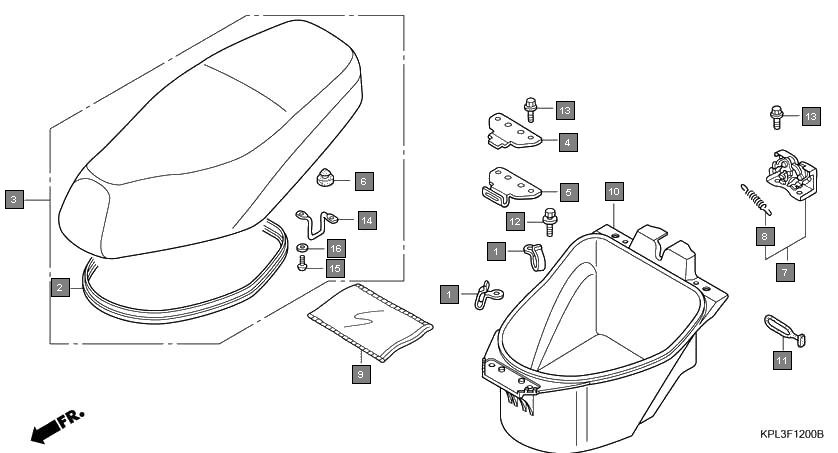

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 77106KPL900 | HOOK, HELMET | 2 |
| 2 | 77115KRP900 | RUBBER, SEAL | 1 |
| 3 | 77200KPL900ZA | SEAT COMP., DOUBLE*TYPE1* | 1 |
| 4 | 77202KPL900 | PLATE, SEAT HINGE | 1 |
| 5 | 77203KPL900 | PLATE, SEAT HINGE LOWER | 1 |
| 6 | 77206KG8900 | RUBBER, SEAT SETTING | 2 |
| 7 | 77235KPL900 | CATCH COMP., SEAT | 1 |
| 8 | 77236GBL000 | SPRING, SEAT CATCH | 1 |
| 9 | 77251KPL900 | BAG, SERVICE BOOK | 1 |
| 10 | 81250KPL840 | BOX, LUGGAGE | 1 |
| 11 | 89012KPL900 | BAND, TOOL | 1 |
| 12 | 934040801607 | BOLT-WASHER, 8X16 | 1 |
| 13 | 957010601608 | BOLT, FLANGE, 6X16 | 4 |
| 14 | 77102KPL900 | BAR, SEAT LOCK | 1 |
| 15 | 93500040100H | SCREW, PAN, 4X10 | 2 |
| 16 | 9411104800 | WASHER, SPRING, 4MM | 2 |
