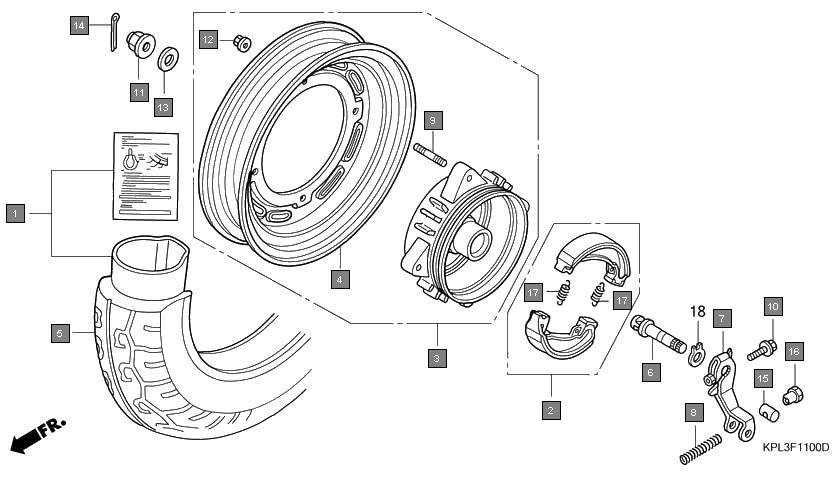

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06427KPL840 | TUBE SET, TUFF UP | 1 |
| 2 | 06430GBJK20 | SHOE SET, BRAKE | 1 |
| 3 | 42650KPL900 | WHEEL SUB ASSY., RR. | 1 |
| 4 | 42702KPL900 | RIM COMP., WHEEL | 1 |
| 5 | 42711KRB904 | TIRE(MRF)(90/100-10 53J) | 1 |
| 6 | 43141KPL840 | CAM, RR. BRAKE | 1 |
| 7 | 43410KPL840 | ARM, RR. BRAKE | 1 |
| 8 | 43472KPL900 | SPRING, RR. BRAKE ARM | 1 |
| 9 | 90110KPL900 | BOLT, STUD, 8X22 | 4 |
| 10 | 90112KPL900 | BOLT, FLANGE, 6X30 | 1 |
| 11 | 90305KPL900 | NUT, HEX. SPECIAL, 16MM | 1 |
| 12 | 90309KPL900 | NUT, SPECIAL FLANGE, 8MM | 4 |
| 13 | 90501KPL900 | WASHER, 16MM | 1 |
| 14 | 9420130220 | PIN, SPLIT, 3.0X22 | 1 |
| 15 | 9501532001 | JOINT B, BRAKE ARM | 1 |
| 16 | 9501542000 | NUT B, BRAKE ROD ADJUSTING | 1 |
| 17 | 43151329000 | SPRING, BRAKE SHOE (ASK) | 2 |
