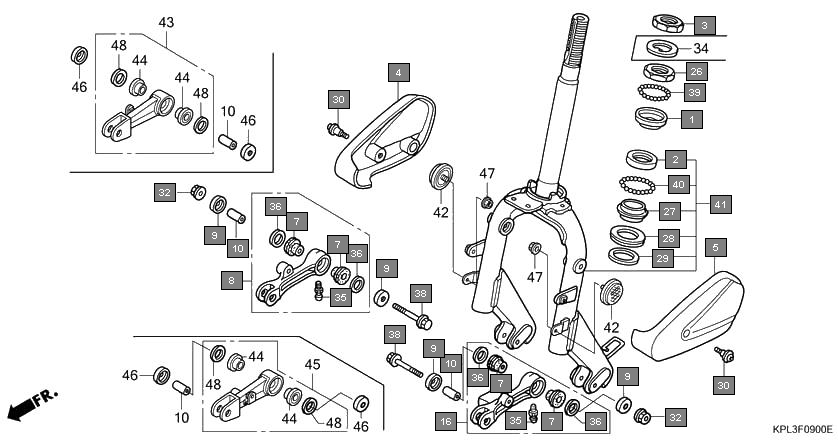

Scooters Activa SCV100CM5 Frame Front fork
Ref.No. Part No. Description Oty
1 50301KEM900 RACE, STEERING UPPER BALL 1
2 50302268010 RACE, STEERING BOTTOM BALL 1
3 50306KPL900 NUT, STEERING STEM LOCK 1
4 51103KPL900 COVER, R. PIVOT ARM 1
5 51104KPL900 COVER, L. PIVOT ARM 1
6 51314KPL900 BUSH, PIVOT ARM 4
7 51315KPL900 ARM SET, R. PIVOT 1
8 51316KPL900 CAP, FR. FORK DISTANCE COLLAR 4
9 51334KPL900 COLLAR, ARM PIVOT 2
10 51415KPL900 ARM SET, L. PIVOT 1
11 53211KEM900 RACE, STEERING TOP CONE 1
12 53212250010 RACE, STEERING BOTTOM CONE 1
13 53214250000 DUST SEAL, STEERING HEAD 1
14 53215KPL900 WASHER, STEERING HEAD DUST SEAL 1
15 90102KPL900 SCREW, FORK COVER 2
16 90309KPL900 NUT, SPECIAL FLANGE, 8MM 2
17 90901KPL900 NIPPLE, GREASE(A-M6) 2
18 91351KPL900 O-RING, 22.1X1.9 4
19 958010805508 BOLT, FLANGE, 8X55 2
20 9621105000 BALL, STEEL, #5(5/32) 26
21 9621108000 BALL, STEEL, #8(1/4) 19
22 51110KPL840 FORK SUB ASSY., FR. 1
