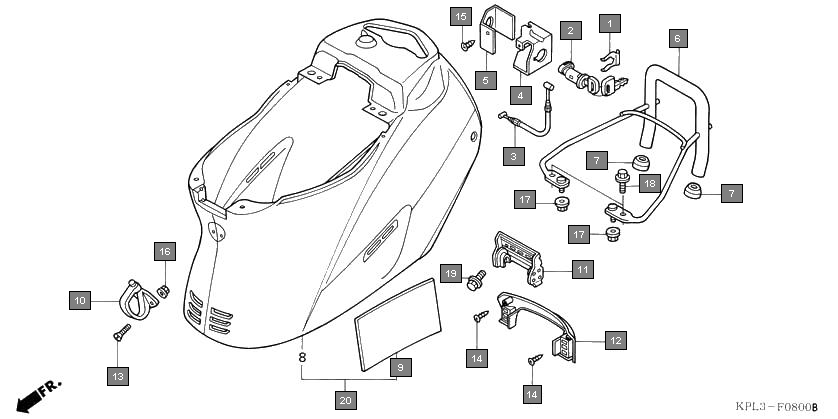

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 75582KCW870 | SPRING, LOCK KEY SETTING | 1 |
| 2 | 77239KPL841 | KEY, SEAT LOCK | 1 |
| 3 | 77240KPL901 | CABLE, SEAT LOCK | 1 |
| 4 | 77241KPL900 | STAY, SEAT LOCK CABLE | 1 |
| 5 | 77242KPL900 | STAY B, SEAT LOCK CABLE | 1 |
| 6 | 81200KPL840 | GRIP COMP., RR. | 1 |
| 7 | 81208KPL900 | RUBBER, RR. GRIP | 2 |
| 8 | 83507KPL900 | INSULATOR, R. BODY COVER | 1 |
| 9 | 83508KPL900 | HOOK, LUGGAGE | 1 |
| 10 | 83560KPL900 | HINGE, BODY COVER | 1 |
| 11 | 83705KPL840ZA | COVER, RR. CENTER LOWER *NH186R* STEEL GRAY | 1 |
| 12 | 93600050120G | SCREW, FLAT, 5X12 | 2 |
| 13 | 9390325380 | SCREW, TAPPING, 5X16 | 2 |
| 14 | 9390334320 | SCREW, TAPPING, 4X12 | 1 |
| 15 | 9405005000 | NUT, FLANGE, 5MM | 2 |
| 16 | 9405006000 | NUT, FLANGE, 6MM | 2 |
| 17 | 957010801607 | BOLT, FLANGE, 8X16 | 2 |
| 18 | 957011002000 | BOLT, FLANGE, 10X20 | 2 |
| 19 | 83410KPL840ZC | COVER SET, BODY(WL) *NH1* BLACK | 1 |
| 20 | 83410KPL840ZE | COVER SET, BODY(WL) *R269M* STRINGS RED METALLIC | 1 |
| 21 | 83410KPL840ZA | COVER SET, BODY(WL) *B172M* AZURE BLUE METALLIC | 1 |
| 22 | 83410KPL840ZF | COVER SET, BODY(WL) *YR231M* PRECIOUS GOLD METALLIC | 1 |
| 23 | 83410KPL840ZB | COVER SET, BODY(WL) *NHA04M* GENY GRAY METALLIC | 1 |
| 24 | 83410KPL840ZD | COVER SET, BODY(WL) *NH468M* STRAND SILVER METALLIC | 1 |
