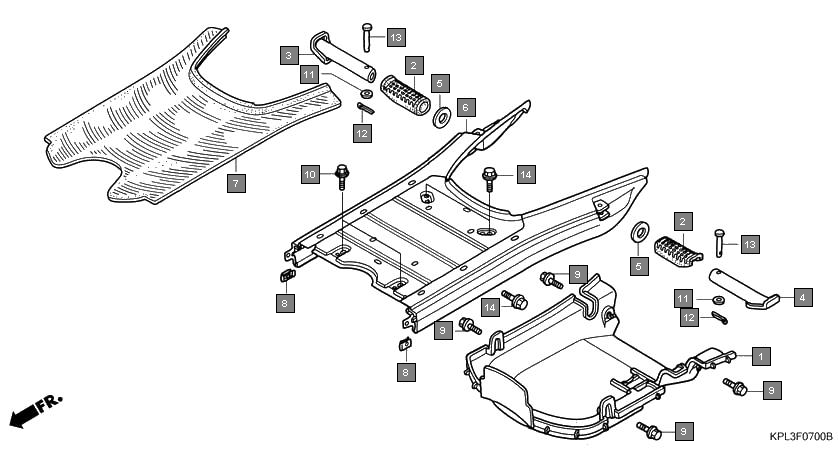

Scooters Activa SCV100CM5 Frame Floor panel(scv100cm2,5)
Ref.No. Part No. Description Oty
1 50621KPL901 COVER, UNDER 1
2 50710KE8000 RUBBER, PILLION STEP 2
3 50711KPL900 BAR, R. PILLION STEP 1
4 50712KPL900 BAR, L. PILLION STEP 1
5 50715KE8000 PLATE, PILLION STEP SIDE 2
6 64310KPL840ZF PANEL COMP., FLOOR *YR231M* PRECIOUS GOLD METALLIC 1
7 64310KPL840ZC PANEL COMP., FLOOR *NH1* BLACK 1
8 64310KPL840ZD PANEL COMP., FLOOR *NH468M* STRAND SILVER METALLIC 1
9 64310KPL840ZA PANEL COMP., FLOOR *B172M* AZURE BLUE METALLIC 1
10 64310KPL840ZB PANEL COMP., FLOOR *NHA04M* GENY GRAY METALLIC 1
11 64310KPL840ZE PANEL COMP., FLOOR *R269M* STRINGS RED METALLIC 1
12 64320KPL900 MAT, FLOOR 1
13 90344KPL900 NUT, CLIP, 5MM 2
14 934040601208 BOLT-WASHER, 6X12 4
15 934040602008 BOLT-WASHER, 6X20 2
16 9410106000 WASHER, PLAIN, 6MM 2
17 9420116150 PIN, SPLIT, 1.6X15 2
18 9501581000 PIN A, PILLION STEP 2
19 957010801608 BOLT, FLANGE, 8X16 4
