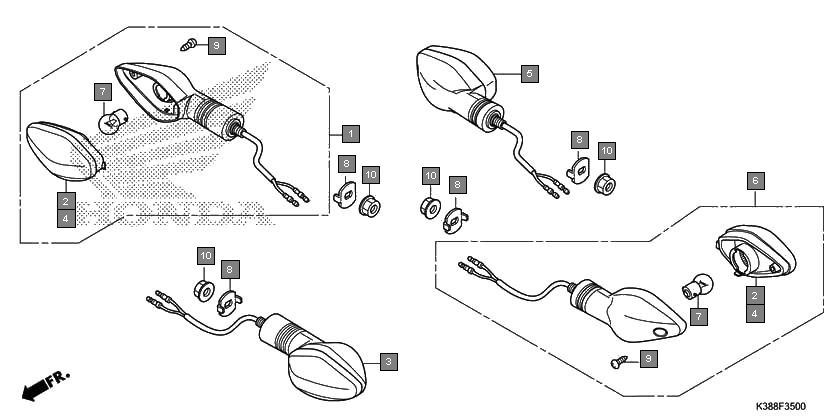

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33400KWS901 | WINKER ASSY., R. FR.(12V 10W) | 1 |
2 | 33403KWS901 | LENS COMP., R.(R. FR./L. RR.) | 2 |
3 | 33450KWS901 | WINKER ASSY., L. FR.(12V 10W) | 1 |
4 | 33453KWS901 | LENS COMP., L.(L. FR./R. RR.) | 2 |
5 | 33600K38901 | WINKER ASSY., R. RR.(12V 10W) | 1 |
6 | 33650K38901 | WINKER ASSY., L. RR.(12V 10W) | 1 |
7 | 34930KWA930 | BULB, WINKER(12V 10W)(AMBER) | 4 |
8 | 61315GGJ700 | STAY, WINKER | 4 |
9 | 9390134380 | SCREW, TAPPING, 4X12 | 4 |
10 | 9405010000 | NUT, FLANGE, 10MM | 4 |
