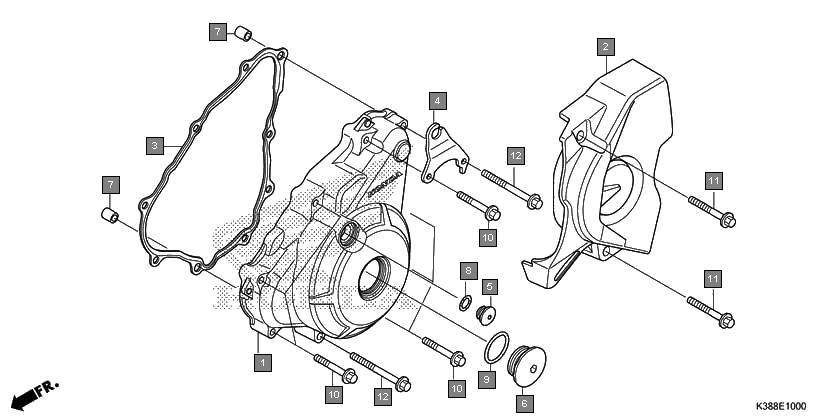

Motorcycles CB Unicorn 160 CBF160F Engine Left crankcase cover
Ref.No. Part No. Description Oty
1 11341K38900 COVER, L. CRANKCASE 1
2 11360K38900 COVER COMP., L. RR. 1
3 11395KREG01 GASKET, L. COVER 1
4 17952K38900 STAY, CHOKE CABLE 1
5 90087KSP860 CAP, 32MM 1
6 90702KRM840 DOWEL PIN, 8X14 2
7 91303KRM840 O-RING, 13.8X2.5 1
8 91305KRM840 O-RING, 31.7X2.4 1
9 960010603500 BOLT, FLANGE, 6X35 7
10 960010604000 BOLT, FLANGE, 6X40 2
11 960010604500 BOLT, FLANGE, 6X45 2
12 90084K38940 CAP, 14MM 1
