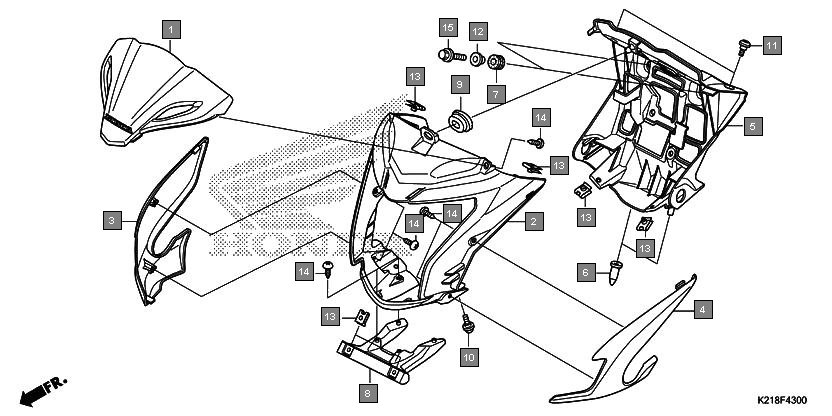

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 61300K21900ZA | VISOR SET, FR.(WL) *TYPE1* | 1 |
2 | 61302K21900 | COWL, FR. | 1 |
3 | 61305K21900ZA | GARNISH, R. FR. *R320P* PEARL SIENA RED | 1 |
4 | 61305K21900ZE | GARNISH, R. FR. *GY147M* METEOR GREEN METALLIC | 1 |
5 | 61305K21900ZC | GARNISH, R. FR. *NH1* BLACK | 1 |
6 | 61305K21900ZD | GARNISH, R. FR. *NHA66P* PEARL SUNBEAM WHITE | 1 |
7 | 61305K21900ZF | GARNISH, R. FR. *PB393M* NEON BLUE METALLIC | 1 |
8 | 61306K21900ZA | GARNISH, L. FR. *R320P* PEARL SIENA RED | 1 |
9 | 61306K21900ZE | GARNISH, L. FR. *GY147M* METEOR GREEN METALLIC | 1 |
10 | 61306K21900ZC | GARNISH, L. FR. *NH1* BLACK | 1 |
11 | 61306K21900ZD | GARNISH, L. FR. *NHA66P* PEARL SUNBEAM WHITE | 1 |
12 | 61306K21900ZF | GARNISH, L. FR. *PB393M* NEON BLUE METALLIC | 1 |
13 | 61310K21900 | COVER, HEADLIGHT RR. | 1 |
14 | 61312KCT690 | BOOT, HEADLIGHT STAY | 2 |
15 | 64615KR1860 | RUBBER, LOWER COWL MOUNTING | 2 |
16 | 64315K21900 | STAY, FR. NUMBER PLATE | 1 |
17 | 83551GE2000 | GROMMET, AIR CLEANER CASE | 1 |
18 | 90101GE0000 | SCREW, HINGE PATCH | 2 |
19 | 90134KPPT00 | SCREW, PAN, 5X14 | 2 |
20 | 90310KWS900 | COLLAR, FR. COWL | 2 |
21 | 90320KTE600 | NUT, SPRING, 5MM | 4 |
22 | 90320KTE600 | NUT, SPRING, 5MM | 6 |
23 | 9390325220 | SCREW, TAPPING, 5X12 | 6 |
24 | 9390325220 | SCREW, TAPPING, 5X12 | 10 |
25 | 957010602500 | BOLT, FLANGE, 6X25 | 2 |
26 | 957020602500 | BOLT, FLANGE, 6X25 | 2 |
