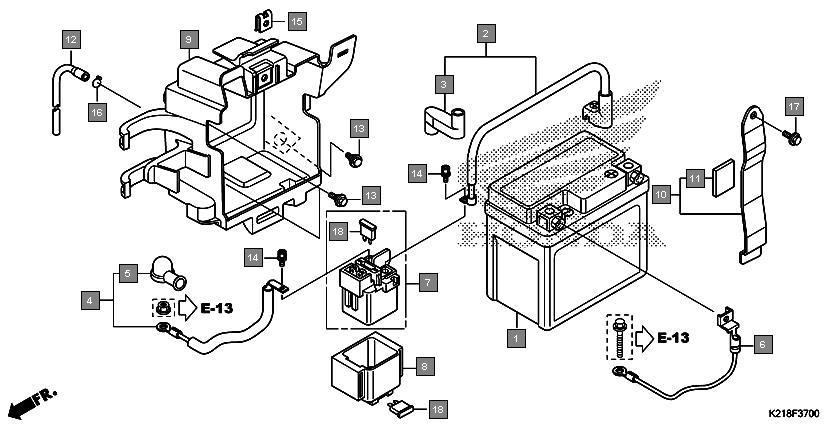

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 31500KRP801 | BATTERY(ETZ5-BS)(EXIDE) | 1 |
2 | 31500KRPN41 | BATTERY(ETZ5)(EXIDE) | 1 |
3 | 32401K21900 | CABLE, STARTER MAGNETIC BATTERY | 1 |
4 | 32406MT3610 | COVER A, STARTER MAGNETIC TERMINAL | 1 |
5 | 32410K21900 | CABLE, STARTER MOTOR | 1 |
6 | 32411253000 | COVER, STARTER MOTOR TERMINAL | 1 |
7 | 32601K21900 | CABLE, BATTERY EARTH | 1 |
8 | 35850KEB620 | SWITCH ASSY., STARTER MAGNETIC | 1 |
9 | 35856K21900 | RUBBER, SHOCK | 1 |
10 | 50384K21900 | BOX, BATTERY | 1 |
11 | 50386K21900 | BAND COMP., BATTERY | 1 |
12 | 50386130690 | CUSHION C, BATTERY | 1 |
13 | 50388K21900 | TUBE, BATTERY TRAY | 1 |
14 | 90111162000 | BOLT, FLANGE, 6MM | 3 |
15 | 90111MR5000 | BOLT, SOCKET, 5X9 | 2 |
16 | 90320747000 | NUT, SPRING, 6MM | 1 |
17 | 90651MK3780 | CLIP, TUBE(B12.5) | 1 |
18 | 957010601200 | BOLT, FLANGE, 6X12 | 1 |
19 | 957020601200 | BOLT, FLANGE, 6X12 | 1 |
20 | 9820032000 | FUSE, BLADE(20A) | 2 |
