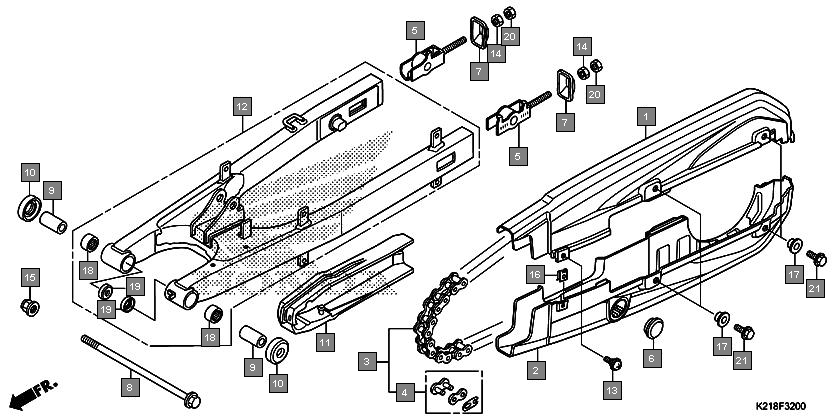

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 40510K21900 | CASE, UPPER HALF DRIVE CHAIN | 1 |
| 2 | 40520K21900 | CASE, UNDER HALF DRIVE CHAIN | 1 |
| 3 | 40530KSP901 | CHAIN, DRIVE(428H-126)(T.I.D.) | 1 |
| 4 | 40530KSP902 | CHAIN, DRIVE(428H-126)(L.G.B.) | 1 |
| 5 | 40531KSP901 | JOINT, DRIVE CHAIN(T.I.D.) | 1 |
| 6 | 40531KSP902 | JOINT, DRIVE CHAIN(L.G.B.) | 1 |
| 7 | 40543KSP900 | ADJUSTER, R. CHAIN | 2 |
| 8 | 40545KWV010 | CAP, CHAIN CASE PEEP HOLE | 1 |
| 9 | 40546KR1760 | CAP, RR. FORK END | 2 |
| 10 | 52101K21900 | BOLT, SWINGARM PIVOT | 1 |
| 11 | 52141K21900 | COLLAR, SWINGARM PIVOT | 2 |
| 12 | 52144GC4003 | DUST SEAL, 31X40.5X7.1(ARAI) | 2 |
| 13 | 52170K21900 | SLIDER, CHAIN | 1 |
| 14 | 52200K21910 | SWINGARM SUB ASSY., RR. | 1 |
| 15 | 52200K21900 | SWINGARM SUB ASSY., RR. | 1 |
| 16 | 90101GE0000 | SCREW, HINGE PATCH | 1 |
| 17 | 90302KBP900 | NUT, SPECIAL, 6MM | 2 |
| 18 | 90305KVN901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 |
| 19 | 90320KTE600 | NUT, SPRING, 5MM | 1 |
| 20 | 90522KSP860 | COLLAR, CHAIN CASE SETTING | 4 |
| 21 | 91071KSP901 | BEARING, NEEDLE, 20X26X20 | 2 |
| 22 | 91254KS6003 | DUST SEAL, 20X26X4.5(ARAI) | 2 |
| 23 | 94001060000S | NUT, HEX., 6MM | 2 |
| 24 | 957010601607 | BOLT, FLANGE, 6X16 | 4 |
| 25 | 957020601607 | BOLT, FLANGE, 6X16 | 4 |
