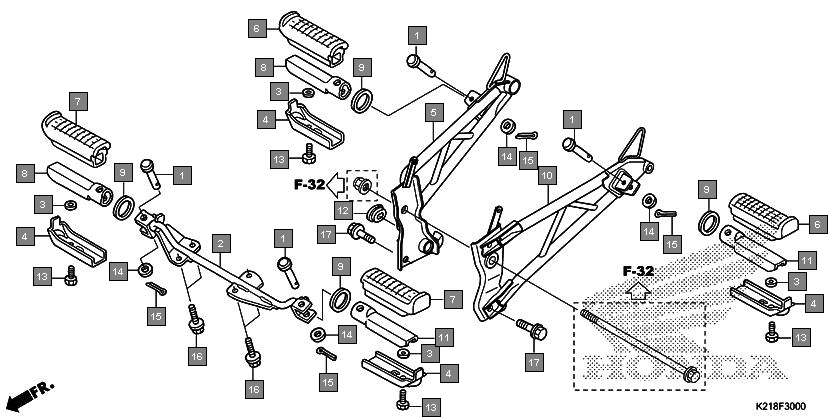

Motorcycles CB Trigger CBF150MD Frame Step
Ref.No. Part No. Description Oty
1 50602KSP900 PIN, MAIN STEP BAR JOINT 4
2 50610K21900 BAR COMP., STEP 1
3 50618KE8000 COLLAR, 6.5X11X3 4
4 50619KSP900 PLATE, STEP LOWER 4
5 50640K21910 HOLDER, R. STEP 1
6 50640K21900 HOLDER, R. STEP 1
7 50661KSPB10 RUBBER, MAIN STEP (PILLION) 2
8 50661KFN850 RUBBER, MAIN STEP 2
9 50661KFN880 RUBBER, MAIN STEP 2
10 50701KSP900 BAR, R. MAIN STEP 2
11 50715KSP910 PLATE, PILLION STEP SIDE 4
12 50740K21900 HOLDER, L. STEP 1
13 50801KSP900 BAR, L. MAIN STEP 2
14 83551300000 GROMMET, AIR CLEANER CASE 1
15 92101060120G BOLT, HEX., 6X12 4
16 9410208000 WASHER, PLAIN, 8MM 4
17 9420120150 PIN, SPLIT, 2.0X15 4
18 957010802000 BOLT, FLANGE, 8X20 4
19 957020802000 BOLT, FLANGE, 8X20 4
20 957011001600 BOLT, FLANGE, 10X16 2
21 957021001600 BOLT, FLANGE, 10X16 2
