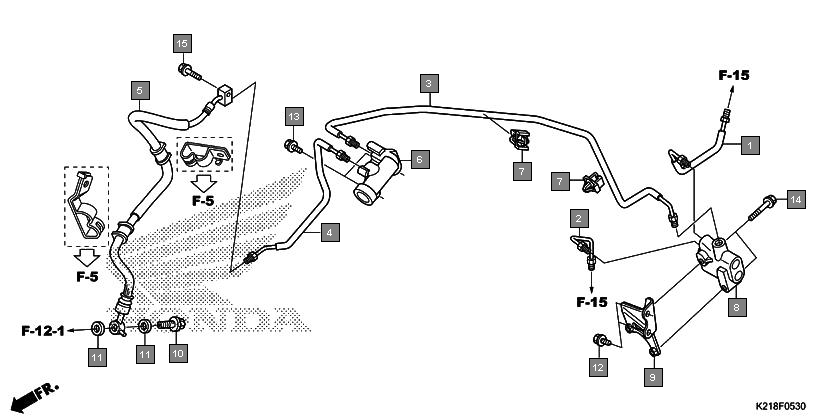

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 43311K21920 | PIPE COMP. A, RR. BRAKE | 1 |
2 | 43312K21920 | PIPE COMP. B, RR. BRAKE | 1 |
3 | 45127K21920 | PIPE COMP. A, FR. BRAKE | 1 |
4 | 45128K21920 | PIPE COMP. B, FR. BRAKE | 1 |
5 | 45129K21921 | HOSE COMP. B, FR. BRAKE | 1 |
6 | 46300MFGD21 | VALVE ASSY., DELAY | 1 |
7 | 46391SDAA01 | CLIP G, BRAKE PIPE | 2 |
8 | 46400K21921 | PCV ASSY. | 1 |
9 | 46410K21920 | STAY COMP., PCV | 1 |
10 | 90145GAZ981 | BOLT, OIL, 10X22 | 1 |
11 | 90545300000 | WASHER, OIL BOLT | 2 |
12 | 957010601208 | BOLT, FLANGE, 6X12 | 2 |
13 | 957020601208 | BOLT, FLANGE, 6X12 | 2 |
14 | 957010601400 | BOLT, FLANGE, 6X14 | 2 |
15 | 957020601400 | BOLT, FLANGE, 6X14 | 2 |
16 | 958010604008 | BOLT, FLANGE, 6X40 | 2 |
17 | 958020604008 | BOLT, FLANGE, 6X40 | 2 |
18 | 960010602500 | BOLT, FLANGE, 6X25 | 1 |
