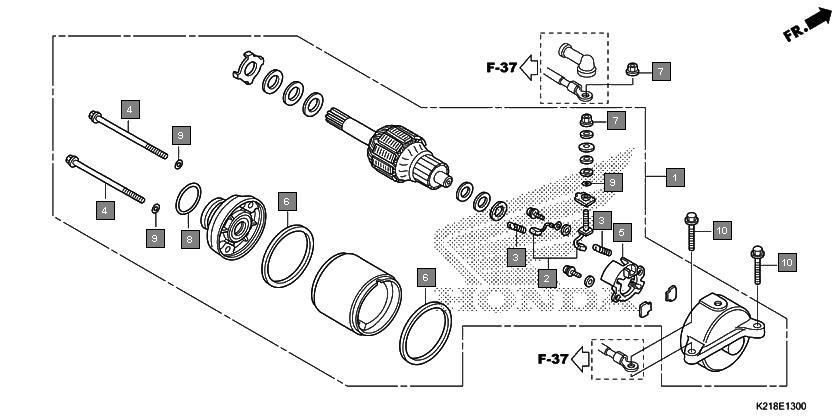

Motorcycles CB Trigger CBF150MD Engine Starter motor
Ref.No. Part No. Description Oty
1 31200KSP901 MOTOR ASSY., STARTING (MITSUBA SM-15) 1
2 31200K21901 MOTOR ASSY., STARTER(MITSUBA) 1
3 31201KPTA01 TERMINAL SET, BRUSH 1
4 31204KG8004 SPRING, CARBON BRUSH 2
5 31205KTC921 BOLT, SETTING 2
6 31206KPH881 HOLDER, BRUSH 1
7 31207MBE008 RING 2
8 90071MB0000 NUT-WASHER, 6MM 2
9 91309425003 O-RING, 24.4X3.1(ARAI) 1
10 91320MB0000 O-RING, 4X2 3
11 957010602200 BOLT, FLANGE, 6X22 2
12 957020602200 BOLT, FLANGE, 6X22 2
