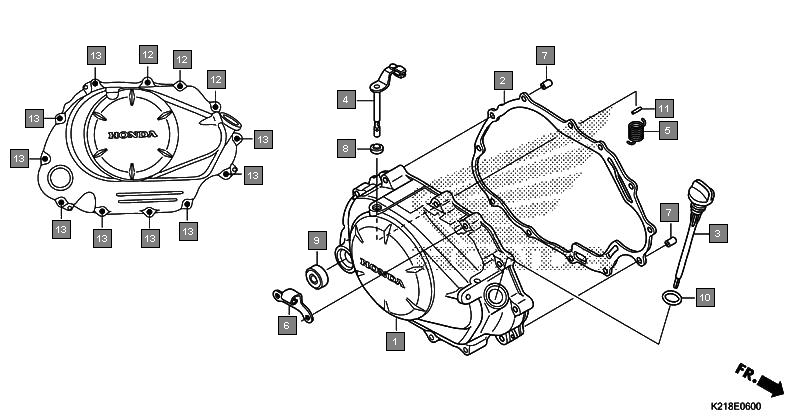

Motorcycles CB Trigger CBF150MD Engine Right crankcase cover
Ref.No. Part No. Description Oty
1 11330KSPB11 COVER COMP., R. CRANKCASE 1
2 11330KSPB10 COVER COMP., R. CRANKCASE 1
3 11393KWK900 GASKET, R. CRANKCASE COVER 1
4 15651KSP910 GAUGE, OIL LEVEL 1
5 22810KRMB00 LEVER COMP., CLUTCH 1
6 22815428000 SPRING, CLUTCH LEVER 1
7 22821KSPB00 RECEIVER, CLUTCH CABLE 1
8 90702KRM840 DOWEL PIN, 8X14 2
9 91202KSP911 OIL SEAL, 12X18X4 1
10 91204KSP911 OIL SEAL, 16X28X7 1
11 91307KRM840 O-RING, 18X3 1
12 9430530102 PIN, SPRING, 3X10 1
13 960010603000 BOLT, FLANGE, 6X30 3
14 960010604000 BOLT, FLANGE, 6X40 9
