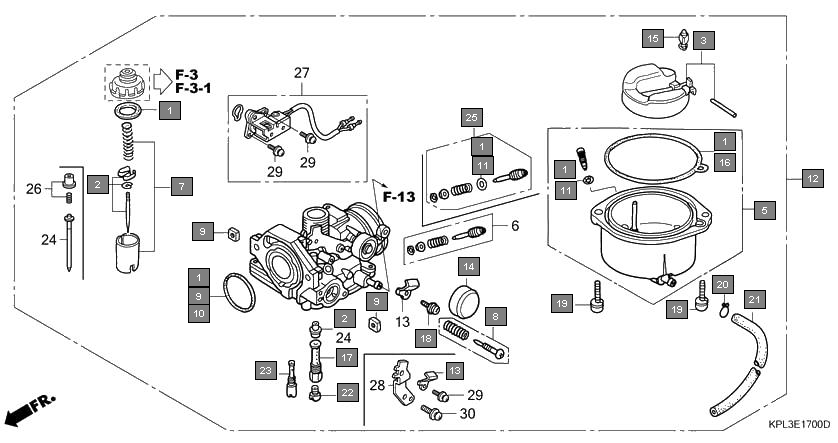

Scooters Activa SCV110D Engine Carburetor
Ref.No. Part No. Description Oty
1 16010KVT901 GASKET SET 1
2 16013KRB901 FLOAT SET 1
3 16015KVT901 CHAMBER SET, FLOAT 1
4 16022KWP901 VALVE SET, THROTTLE 1
5 16028KPL901 SCREW SET 1
6 16041KPL901 NUT SET, SQUARE 1
7 16075KPL901 O-RING 1
8 16076KPL901 O-RING 2
9 16100KWPD01 CARBURETOR ASSY.(PB5LT A) 1
10 16119KPL901 PLATE, STAY 1
11 16148KPL901 CAP, CHOKE DUST 1
12 16155KPL901 VALVE COMP., FLOAT 1
13 16163GFP901 GASKET, FLOAT CHAMBER 1
14 16165KWP901 HOLDER, NEEDLE JET 1
15 938920401808 SCREW-WASHER, 4X18 2
16 9500202659 CLIP, TUBE(B6.5) 1
17 950053528050 TUBE, 3.5X280(95005-35001-50M) 1
18 99101KSS0880 JET, MAIN, #88 1
19 99103KWP0350 JET COMP.(#35X#35) 1
20 16012KVT941 NEEDLE SET, JET 1
21 16016KPH901 SCREW SET 1
22 16037KRS601 PLATE SET, VALVE 1
23 16060KWP901 SWITCH ASSY., THROTTLE 1
24 16119KWP901 STAY, WIRE 1
25 938920401018 SCREW-WASHER, 4X10 3
26 938920501218 SCREW-WASHER, 5X12 1
