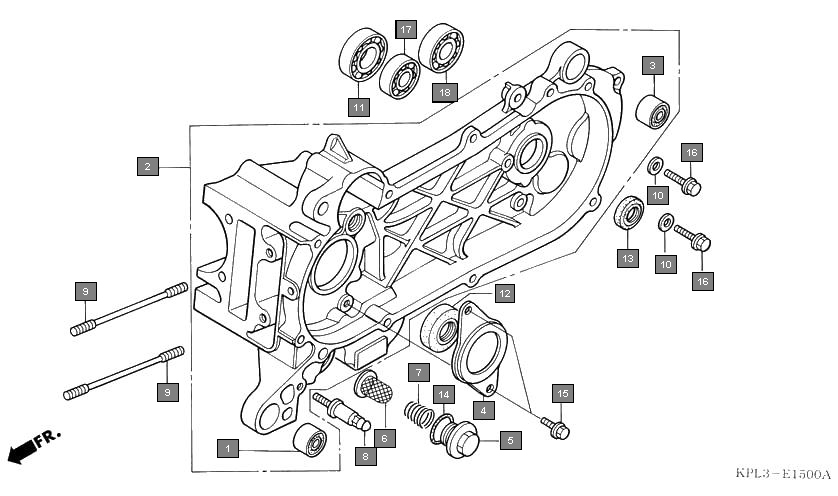

Scooters Activa SCV110D Engine Left crankcase
Ref.No. Part No. Description Oty
1 11103KWP900 BUSH, ENGINE HANGER RUBBER 1
2 11200KWPD00 CRANKCASE COMP., L. 1
3 11203GC7300 BUSH, RR. CUSHION UNDER RUBBER 1
4 11204KWPD00 PLATE, OIL SEAL STOPPER 1
5 12361KPL900 CAP, TAPPET ADJUSTING HOLE 1
6 15421KPL900 SCREEN, OIL FILTER 1
7 15426KCW880 SPRING, OIL FILTER SCREEN 1
8 90008KPL900 BOLT, MAIN STAND SPRING 1
9 90032KWPD00 BOLT B, STUD, 7X198 2
10 90474333000 WASHER, SEALING, 8MM 2
11 91104KCW880 BEARING, RADIAL BALL, 6204 1
12 91202KWPD01 OIL SEAL, 20.8X53X6(ARS) 1
13 91203KWPD01 OIL SEAL, 20X32X6.2(ARS) 1
14 91302001020 O-RING, 30.8MM 1
15 957020601600 BOLT, FLANGE, 6X16 2
16 957010601600 BOLT, FLANGE, 6X16 2
17 957010801200 BOLT, FLANGE, 8X12 2
18 957020801200 BOLT, FLANGE, 8X12 2
19 91006KWPG32 BEARING, RADIAL BALL, 6201 (FAG) 1
20 91006KWP901 BEARING, RADIAL BALL, 6201(NSK) 1
21 91006KWPG31 BEARING, RADIAL BALL, 6201 (NBC) 1
22 91007KWPG31 BEARING, RADIAL BALL, 6202 (NBC) 1
23 91007KWPG32 BEARING, RADIAL BALL, 6202 (FAG) 1
24 91007KWP901 BEARING, RADIAL BALL, 6202(NSK) 1
