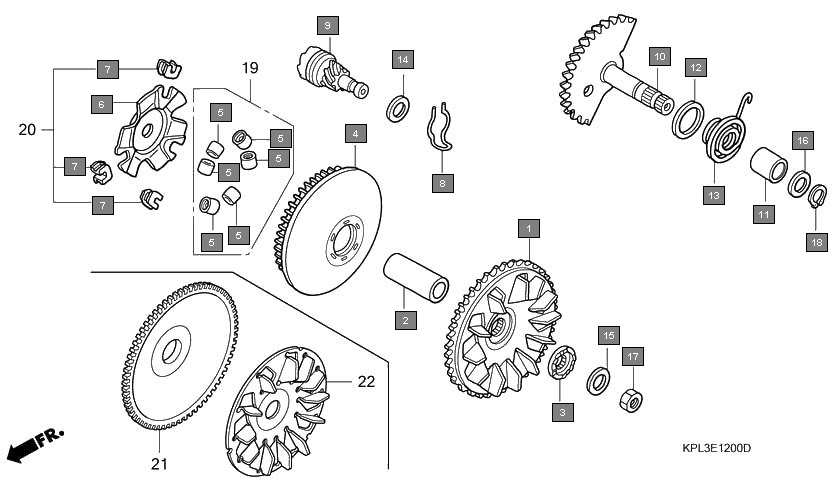

Scooters Activa SCV110B Engine Drive face
Ref.No. Part No. Description Oty
1 22105KWP900 BOSS, DRIVE FACE 1
2 22109KWP900 RATCHET, STARTER 1
3 22110KWP900 FACE COMP., MOVABLE DRIVE 1
4 22131KWP900 PLATE, RAMP 1
5 28223GCC000 SPRING, KICK DRIVEN GEAR 1
6 28230KVT900 GEAR COMP., KICK DRIVEN(7T) 1
7 28250KVT900 SPINDLE COMP., KICK STARTER 1
8 28253KVT900 BUSH, KICK SPINDLE 1
9 28255KPL900 COLLAR, KICK BOSS 1
10 28281GCC000 SPRING, KICK RETURN 1
11 90412329000 WASHER, THRUST, 10MM 1
12 90426KVB900 WASHER, SPECIAL, 14MM 1
13 90451KVT900 WASHER, KICK SPINDLE 1
14 9403014200 NUT, HEX., 14MM 1
15 90608KVT901 CIRCLIP, EXTERNAL, 16MM 1
16 22123KWP900 ROLLER SET, WEIGHT 1
17 22011KPL940 PIECE SET, SLIDE 1
18 22102KWP900 FACE, DRIVE(66T) 1
19 22113KWP900 FIN, DRIVE FACE 1
