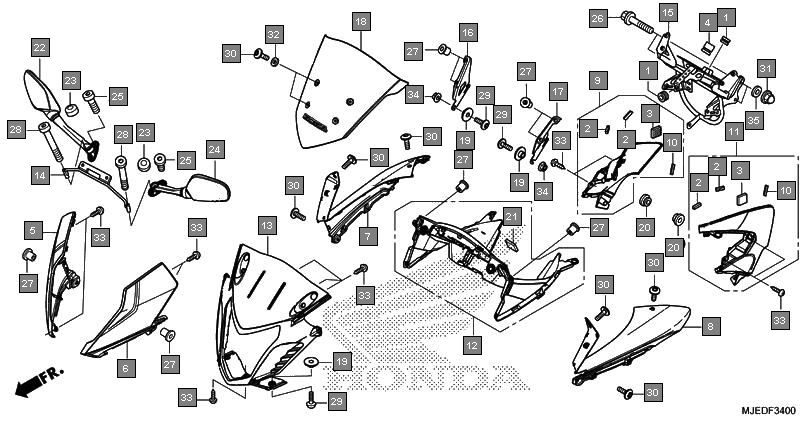

Motorcycles CBR650F CBR650FAG Frame Upper cowl
Ref.No. Part No. Description Oty
1 11344MB0000 GROMMET A, RR. COVER(8X16X6.6) 2
2 17541MJED00 FASTENER C, DUAL LOCK, 8X25 4
3 17542MJED00 FASTENER D, DUAL LOCK, 20X20 2
4 37215KZZ900 RUBBER, METER SETTING 3
5 64110MJED20ZA COWL SET A, R. UPPER(WL) *TYPE1* 1
6 64120MJED20ZA COWL SET A, L. UPPER(WL) *TYPE1* 1
7 64131MJED00ZA COWL B, R. UPPER *R263* MILLENNIUM RED 1
8 64141MJED00ZA COWL B, L. UPPER *R263* MILLENNIUM RED 1
9 64150MJED00 COWL ASSY. C, R. UPPER 1
10 64152MJED00 RUBBER, UPPER COWL 2
11 64160MJED00 COWL ASSY. C, L. UPPER 1
12 64170MJED02 PANEL ASSY., METER 1
13 64181MJED00 COVER, HEADLIGHT 1
14 64305MJES10 STAY, FR. NUMBER PLATE 1
15 64501MJED00 STAY COMP., FR. COWL UPPER 1
16 67102MJED00 STAY, R. SCREEN 1
17 67103MJED00 STAY, L. SCREEN 1
18 67110MJED00ZA WINDSCREEN(WL) *TYPE1* 1
19 80113MJED00 COLLAR A 6
20 83551376000 GROMMET, SIDE COVER 2
21 86150GFC901 EMBLEM, PRODUCT(MARUI) 1
22 88110MJED01 MIRROR ASSY., R. BACK 1
23 88113MJES11 RUBBER, PLUG 2
24 88120MJED01 MIRROR ASSY., L. BACK 1
25 90001MCKA50 BOLT, SOCKET, 6X20 2
26 90101GBL000 BOLT, FLANGE, 8X35 2
27 90111KW3003 NUT, COWL SETTING, 5MM 8
28 90111MJES10 BOLT, SOCKET, 6X50 2
29 90133MJED00 SCREW, PAN, 5X16 6
30 90134MJED00 SCREW, PAN, 5X16 10
31 90307MJED00 NUT, HEX. CAP, 8MM 2
32 90504964000 WASHER, THRUST, 5MM 4
33 9390324380 SCREW, TAPPING, 4X12 12
34 9405005000 NUT, FLANGE, 5MM 4
35 9410108700 WASHER, PLAIN, 8MM 2
