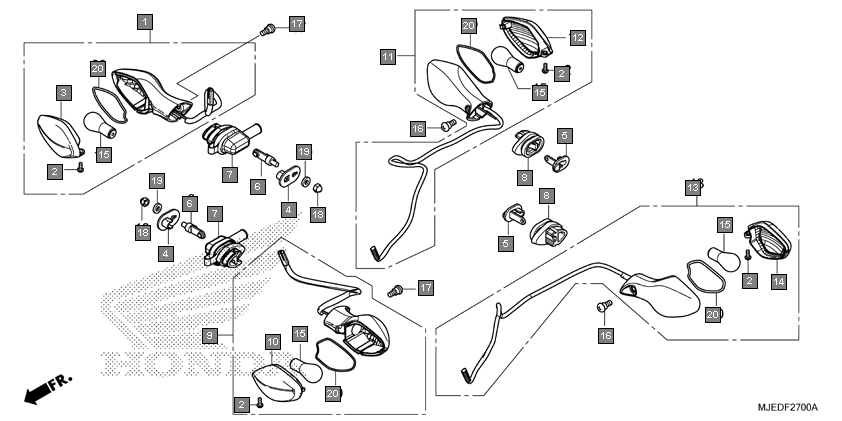

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 33400MJED01 | WINKER ASSY., R. FR.(12V 21W) | 1 |
2 | 33402MGSD31 | SCREW, SPECIAL, 4X10 | 4 |
3 | 33404MGSD31 | LENS COMP., R. WINKER | 1 |
4 | 33411MGZJ00 | PLATE, WINKER | 2 |
5 | 33412MGSD30 | STAY, WINKER | 2 |
6 | 33412MGZJ00 | STAY, WINKER | 2 |
7 | 33413MGZJ00 | RUBBER, WINKER MOUNTING | 2 |
8 | 33413MGZJ40 | RUBBER, WINKER MOUNTING | 2 |
9 | 33450MJED01 | WINKER ASSY., L. FR.(12V 21W) | 1 |
10 | 33454MGSD31 | LENS COMP., L. WINKER | 1 |
11 | 33600MJED01 | WINKER ASSY., R. RR.(12V 21W) | 1 |
12 | 33604MGSD31 | LENS COMP., R. WINKER | 1 |
13 | 33650MJED01 | WINKER ASSY., L. RR.(12V 21W) | 1 |
14 | 33654MGSD31 | LENS COMP., L. WINKER | 1 |
15 | 34904MGZD01 | BULB, WINKER(AMBER)(12V 21W) (PY21W) | 4 |
16 | 90380MGSD30 | SCREW, SPECIAL, 6X8 | 2 |
17 | 90380MGZJ00 | SCREW, SPECIAL, 6X8 | 2 |
18 | 94021060000S | NUT, CAP, 6MM | 2 |
19 | 9410106700 | WASHER, PLAIN, 6MM | 2 |
20 | 33405MKAD81 | SEAL, GASKET | 1 |
